NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 560A - CHASSIS FRAME FIG. 565A - CROSSMEMBER FIG. 572A - TIRE CARRIER FIG. 580A - FRONT FENDER PANEL FIG. 590A - FRONT BODY PANEL (N_AC)FIG. 601A - FRONT FLOOR PANEL FIG. 630A - DECK FLOOR PANEL (SIG_GTBD)FIG. 635A - DECK GATE (SIG_GTBD)FIG. 635B - DECK GATE (TRE_GTBD)FIG. 640A - SIDE BODY PANEL FIG. 660A - ROOF PANEL FIG. 717A - FRONT BUMPER FIG. 721A - INSTRUMENT PANEL UPPER (N_AC)FIG. 721B - INSTRUMENT PANEL UPPER (W_MN_AC)FIG. 722A - INSTRUMENT PANEL LOWER FIG. 730A - VENTILATOR (W_MN_AC)FIG. 732A - HEATER UNIT (W_MN_AC)FIG. 735A - HEATER BLOWER (W_MN_AC)FIG. 736A - HEATER DOOR (W_MN_AC)FIG. 737A - EVAPORATOR UNIT (W_MN_AC)FIG. 740A - CONSOLE BOX FIG. 741A - FLOOR CARPET FIG. 750A - COVER/CAP FIG. 760A - ROOF LINING FIG. 773A - OPENING TRIM FIG. 780A - EMBLEM FIG. 790A - WINDSHIELD FIG. 800A - FRONT DOOR PANEL FIG. 810A - FRONT DOOR REGULATOR FIG. 820A - FRONT DOOR LOCK FIG. 835A - MIRROR/SUNVISOR FIG. 840A - SEAT BELT FIG. 848A - FRONT LH SEAT FIG. 849A - FRONT RH SEAT FIG. 865A - FUEL TANK FIG. 893A - TOOL FIG. 960A - CONDENSER (W_MN_AC)FIG. 966A - A/C PIPING (W_MN_AC)FIG. 990A - COMPRESSOR (W_MN_AC)FIG. 70JA MUD FLAP FIG. 73AA HEATER CONTROL (W_MN_AC)FIG. 630B - DECK FLOOR PANEL (TRE_GTBD)FIG. 590B - FRONT BODY PANEL (W_MN_AC)FIG. 630C DECK FLOOR PANEL (SPB)

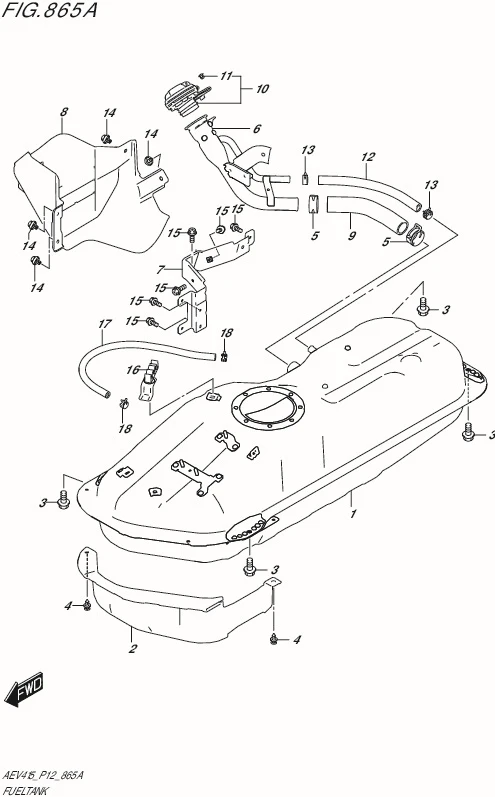

FIG. 865A - FUEL TANK

FIG. 865A - FUEL TANK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 89101-52S00-000	TANK ASSY,FUEL	1	-
2	89191-52S00-000	COVER,FUEL TANK LOWER	1	Rp93.000
3	09118-10078-000	BOLT (10X30)	4	Rp19.000
4	09409-08327-000	CLIP (7.8X20)	2	Rp15.000
5	17859-65H00-000	CLIP,WTR HOSE	2	Rp47.000
6	89210-52S00-000	NECK,FUEL FILLER	1	Rp327.500
7	89216-52S00-000	BRACKET,FUEL FILLER NECK NO.2	1	Rp66.000
8	89231-52S00-000	PROTECTOR,FUEL FILLER NECK	1	Rp67.000
9	89241-52S00-000	HOSE,FUEL TANK FILLER	1	Rp45.000
10	89260-82M01-000	CAP ASSY,FUEL FILLER	1	Rp586.500
11	89267-77K00-000	.CLIP,CAP TETHER	1	Rp36.500
12	09355-13001-250	HOSE,FUEL TANK BREATHER	1	Rp39.000
13	09401-18406-000 SUB: 09401B18L04N000	CLIP	2	Rp18.500
14	09409M07L01-000	CLIP (6.8X16.7)	4	Rp5.000
15	02162-0612A-000	SCREW (6X12)	6	Rp11.000
16	18565-52S00-000	CLAMP,PURGE HOSE	1	Rp7.000
17	09355-56L02-400	HOSE	1	Rp34.500
18	09401-11004-000	CLIP	2	Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
