FIG. 800A - FRONT DOOR PANEL

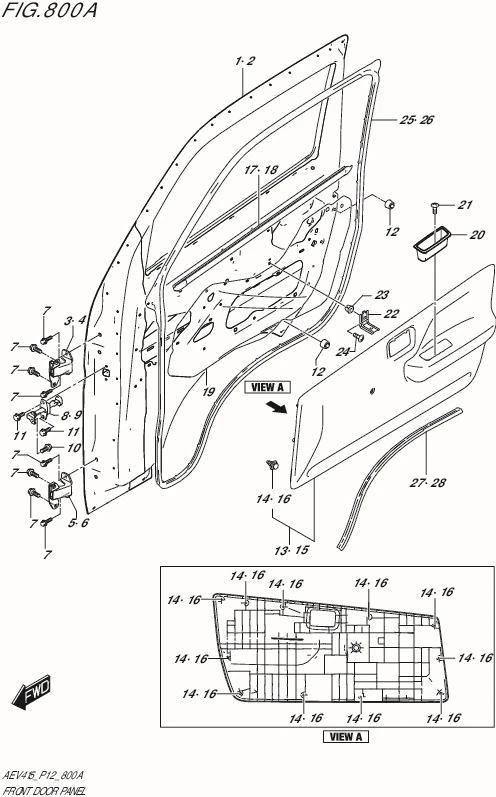

FIG. 800A - FRONT DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 68001-52S02-000
SUB: 68001-52S00-000		 PANEL ASSY,FRONT DOOR,R 1 Rp2.260.500
2 68002-52S22-000
SUB: 68002-52S20-000		 PANEL ASSY,FRONT DOOR,L 1 Rp2.260.500
3 69310-52S00-000 HINGE,FRONT DOOR NO.1 2 Rp70.000
4 69340-52S00-000 HINGE,FRONT DOOR NO.2 2 Rp70.000
5 69340-52S00-000 HINGE,FRONT DOOR NO.2 2 Rp70.000
6 69310-52S00-000 HINGE,FRONT DOOR NO.1 2 Rp70.000
7 01551-0820A-000 BOLT 16 Rp17.500
8 81810-67H03-000 STOP,FRONT DOOR OPEN,R 1 Rp360.500
9 81820-67H03-000 STOP,FRONT DOOR OPEN,L 1 Rp369.500
10 09112-08015-000 BOLT (8X25) 2 Rp32.000
11 01551-0616C-000 BOLT (6X16) 4 Rp14.500
12 82711-65J00-000 CUSHION 4 Rp34.000
13 83710-52S00-U3J TRIM,FRONT DOOR,R (GRAY) 1 Rp1.927.500
14 09409-10327-000 .CLIP 11 Rp5.000
15 83720-52S00-U3J TRIM,FRONT DOOR,L (GRAY) 1 Rp1.927.500
16 09409-10327-000 .CLIP 11 Rp5.000
17 83851-52S00-000 WEATHERSTRIP,FR DOOR INNER,R 1 Rp63.500
18 83861-52S00-000 WEATHERSTRIP,FR DOOR INNER,L 1 Rp63.500
19 83911-52S00-000 COVER,FRONT DOOR SEALING 2 Rp11.500
20 83799-73H00-5PK
SUB: 83799B73H00N5PK		 HANDLE,SIDE DOOR TRIM (BLACK) 2 Rp21.500
21 09132-05058-000 SCREW (5X12) 2 Rp14.000
22 83751M68K00-000 BRACKET,SIDE DR TRIM 2 Rp6.500
23 71851M70F00-000 NUT (M6) 2 Rp4.000
24 03241M0612A-000 SCREW 2 Rp6.500
25 84641-52S00-000 WEATHERSTRIP,FRONT DOOR OPNG,R 1 Rp176.500
26 84651-52S00-000 WEATHERSTRIP,FRONT DOOR OPNG,L 1 Rp176.500
27 84643-52S00-000 WEATHERSTRIP,FRONT DOOR DUST,R 1 Rp44.500
28 84653-52S00-000 WEATHERSTRIP,FRONT DOOR DUST,L 1 Rp44.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
