NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 560A - CHASSIS FRAME FIG. 565A - CROSSMEMBER FIG. 572A - TIRE CARRIER FIG. 580A - FRONT FENDER PANEL FIG. 590A - FRONT BODY PANEL (N_AC)FIG. 601A - FRONT FLOOR PANEL FIG. 630A - DECK FLOOR PANEL (SIG_GTBD)FIG. 635A - DECK GATE (SIG_GTBD)FIG. 635B - DECK GATE (TRE_GTBD)FIG. 640A - SIDE BODY PANEL FIG. 660A - ROOF PANEL FIG. 717A - FRONT BUMPER FIG. 721A - INSTRUMENT PANEL UPPER (N_AC)FIG. 721B - INSTRUMENT PANEL UPPER (W_MN_AC)FIG. 722A - INSTRUMENT PANEL LOWER FIG. 730A - VENTILATOR (W_MN_AC)FIG. 732A - HEATER UNIT (W_MN_AC)FIG. 735A - HEATER BLOWER (W_MN_AC)FIG. 736A - HEATER DOOR (W_MN_AC)FIG. 737A - EVAPORATOR UNIT (W_MN_AC)FIG. 740A - CONSOLE BOX FIG. 741A - FLOOR CARPET FIG. 750A - COVER/CAP FIG. 760A - ROOF LINING FIG. 773A - OPENING TRIM FIG. 780A - EMBLEM FIG. 790A - WINDSHIELD FIG. 800A - FRONT DOOR PANEL FIG. 810A - FRONT DOOR REGULATOR FIG. 820A - FRONT DOOR LOCK FIG. 835A - MIRROR/SUNVISOR FIG. 840A - SEAT BELT FIG. 848A - FRONT LH SEAT FIG. 849A - FRONT RH SEAT FIG. 865A - FUEL TANK FIG. 893A - TOOL FIG. 960A - CONDENSER (W_MN_AC)FIG. 966A - A/C PIPING (W_MN_AC)FIG. 990A - COMPRESSOR (W_MN_AC)FIG. 70JA MUD FLAP FIG. 73AA HEATER CONTROL (W_MN_AC)FIG. 630B - DECK FLOOR PANEL (TRE_GTBD)FIG. 590B - FRONT BODY PANEL (W_MN_AC)FIG. 630C DECK FLOOR PANEL (SPB)

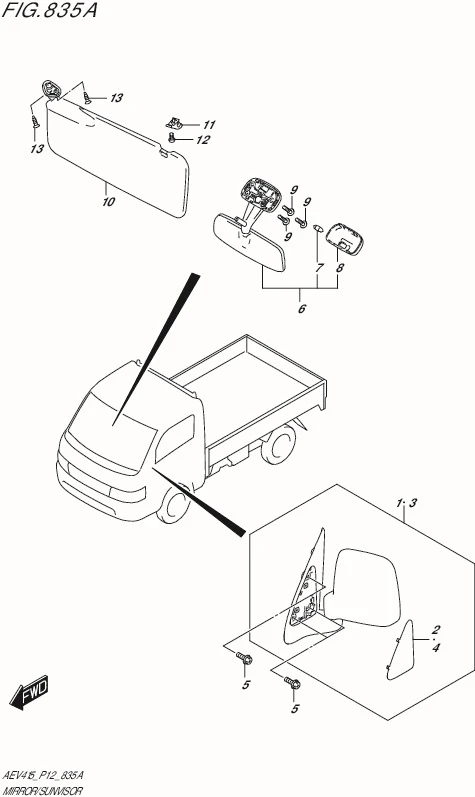

FIG. 835A - MIRROR/SUNVISOR

FIG. 835A - MIRROR/SUNVISOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	84701-52S00-5PK	MIRROR ASSY,OUT REAR VIEW,R (BLACK)	1	Rp232.500
2	84721-52S00-5PK	.COVER,OUT REAR VIEW MIRROR,R (BLACK)	1	Rp14.500
3	84702-52S00-5PK	MIRROR ASSY,OUT REAR VIEW,L (BLACK)	1	Rp232.500
4	84741-52S00-5PK	.COVER,OUT REAR VIEW MIRROR,L (BLACK)	1	Rp14.500
5	02162-0616A-000	SCREW (6X16)	6	Rp3.000
6	84703-52S00-6GS	MIRROR ASSY,INSIDE REAR VIEW (GRAY)	1	Rp220.000
7	35222-52S00-000	.BULB	1	Rp84.500
8	36212-52S00-000	.LENS,ROOM LAMP	1	Rp137.500
9	02142-0616B-000 SUB: 09122M66003-000	SCREW (6X16)	3	Rp5.500
10	84801-52S00-6GS	SUNVISOR ASSY,R (GRAY)	1	Rp160.500
11	84851-60B00-4GF	HOLDER,SUNVISOR (BEIGE)	1	Rp49.000
12	09125-05146-000	SCREW (5X16)	1	Rp18.500
13	09139-05061-000	SCREW (5X16)	2	Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
