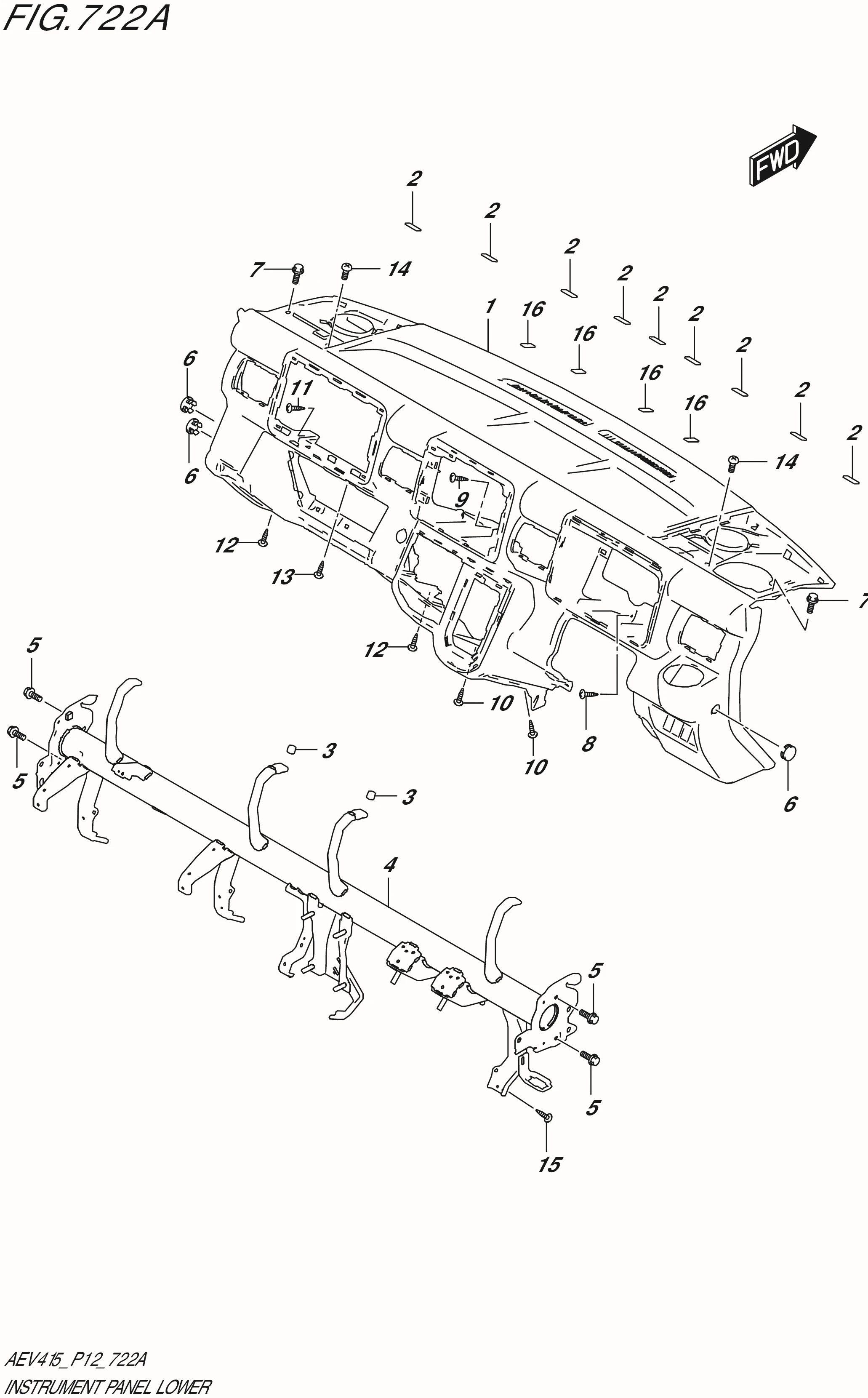

FIG. 722A - INSTRUMENT PANEL LOWER

FIG. 722A - INSTRUMENT PANEL LOWER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73111-52S00-U3J	PANEL,INSTRUMENT MAIN (GRAY)	1	Rp1.022.000
2	73123-52S00-000	FELT,I/P TOP	9	Rp16.500
3	73131-52S00-000	CUSHION,I/P CENTER	2	Rp21.500
4-1	73200-52S00-000	MEMBER,STEERING SUPPORT	1	Rp732.000	N_AC
4-2	73200-52S10-000	MEMBER,STEERING SUPPORT	1	Rp769.000	W_MN_AC
5	73291-52R00-000	BOLT,WITH WASHER	4	Rp19.500
6	73871M73H00-5PK	CAP,I/P SIDE (BLACK)	3	Rp5.000
7	09111-06095-000	BOLT (6X16.5)	2	Rp19.000
8	09132-05049-000	SCREW (5X12)	1	Rp21.000
9	09132-05049-000	SCREW (5X12)	1	Rp21.000
10	09132-05049-000	SCREW (5X12)	2	Rp21.000
11	09132-05049-000	SCREW (5X12)	1	Rp21.000
12	09132-05049-000	SCREW (5X12)	2	Rp21.000
13	09132-05049-000	SCREW (5X12)	1	Rp21.000
14	09139-05049-000	SCREW (5X12)	2	Rp22.500
15	03541-0516A-000	SCREW	1	Rp3.500
16	73123-82M00-000	FELT	4	Rp19.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
