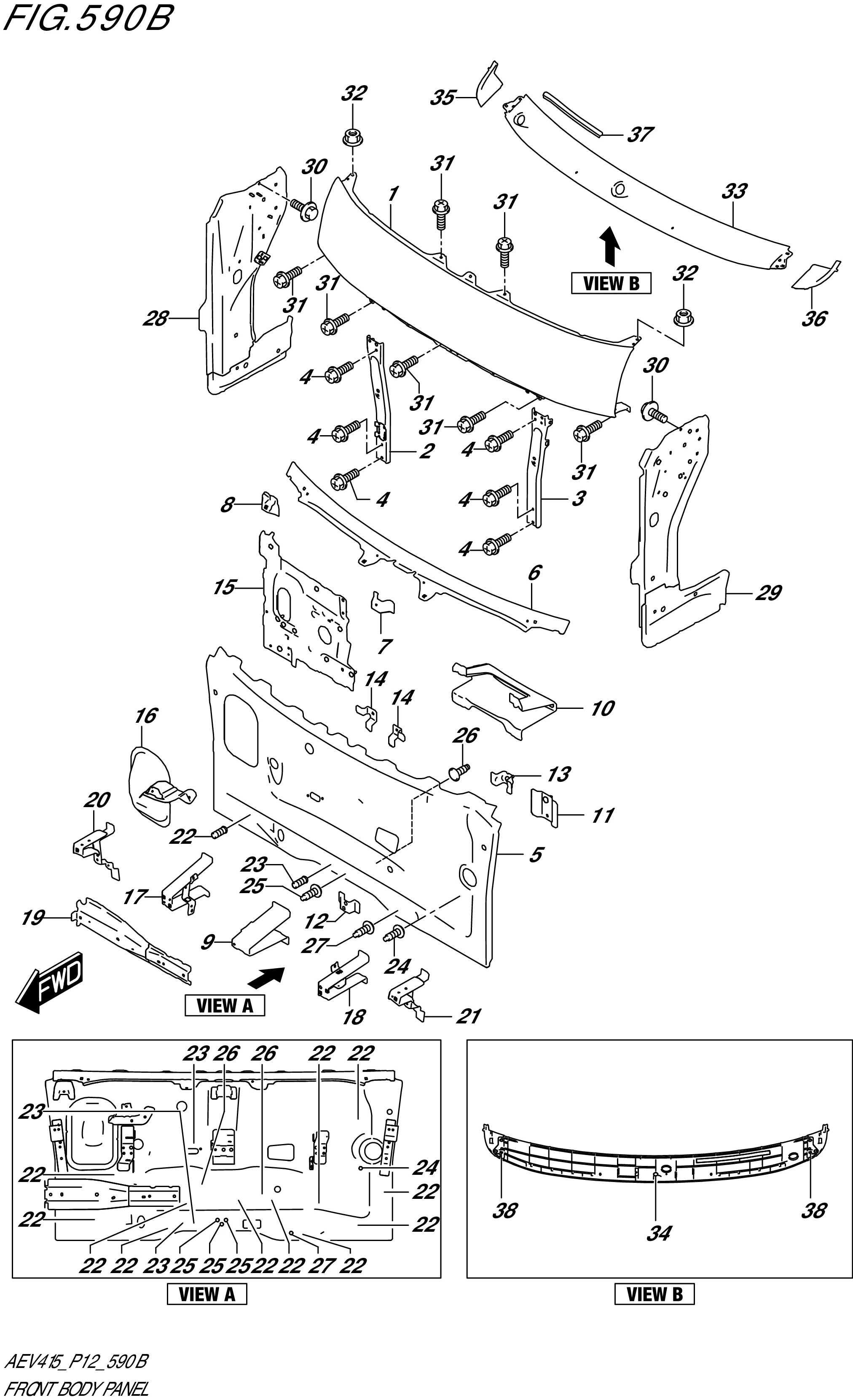

FIG. 590B - FRONT BODY PANEL (W_MN_AC)

No	No. Part	Description	Qty	Price Per Pcs
1	58310-52S01-000 SUB: 58310-52S00-000	PANEL,FRONT END	1	Rp565.500
2	58320-52S00-000	BRACE,HEADLAMP SUPPORT,R	1	Rp74.000
3	58331-52S00-000	BRACE,HEADLAMP SUPPORT,L	1	Rp67.500
4	02162-0612A-000	SCREW (6X12)	6	Rp11.000
5	58811-52S20-000	PANEL,DASH	1	Rp496.000
6	58812-52S00-000	PANEL,COWL TOP	1	Rp500.500
7	58813-52S00-000	BRACKET,WIPER LINK CTR	1	Rp23.000
8	58814-52S00-000	BRACKET,WIPER LINK SIDE	1	Rp24.500
9	58815-52S00-000	BRACKET,BUMPER & FR PNL CTR	1	Rp64.000
10	58821-52S20-000	BRACKET,HVAC UNIT NO.1	1	Rp128.000
11	58822-52S20-000	BRACKET,HVAC UNIT NO.2	1	Rp16.500
12	58823-52S20-000	BRACKET,A/C PIPE	1	Rp7.000
13	58824-52S20-000	BRACKET,HVAC UNIT NO.3	1	Rp7.000
14	58825-52S00-000	BRACKET,JOINT COVER	2	Rp17.000
15	58831-52S00-000	REINF,PEDAL BRACKET	1	Rp488.500
16	58840-52S00-000	BRACKET,WIPER MOTOR	1	Rp118.500
17	58850-52S00-000	BRACKET,BUMPER & FR PNL,R	1	Rp56.500
18	58860-52S00-000	BRACKET,BUMPER & FR PNL,L	1	Rp56.500
19	58870-52S00-000	REINF,DASH PANEL SIDE	1	Rp109.000
20	58880-52S00-000	BRACKET,FENDER & FR PNL,R	1	Rp125.000
21	58890-52S00-000	BRACKET,FENDER & FR PNL,L	1	Rp66.000
22	09119-05018-000	BOLT (5X14.3)	11	Rp13.000
23	09119-05018-000	BOLT (5X14.3)	3	Rp13.000
24	09119-06085-000	BOLT (5X20)	1	Rp18.000
25	09119-06085-000	BOLT (5X20)	3	Rp18.000
26	09119-06085-000	BOLT (5X20)	2	Rp18.000
27	09119-06085-000	BOLT (5X20)	1	Rp18.000
28	58910-52S01-000 SUB: 58910-52S00-000	PANEL,DASH SIDE,R	1	Rp299.500
29	58920-52S01-000 SUB: 58920-52S00-000	PANEL,DASH SIDE,L	1	Rp299.500
30	09116-06168-000	BOLT (6X16)	2	Rp15.000
31	02162-0612A-000	SCREW (6X12)	7	Rp11.000
32	08316-1006A-000	NUT (6X12)	2	Rp2.000
33	72310-52S00-5PK	GARNISH,COWL TOP CTR (BLACK)	1	Rp126.000
34	09409-08331-000	.CLIP (9.2X13)	1	Rp17.000
35	72321-52S00-5PK	GARNISH,COWL TOP SIDE,R (BLACK)	1	Rp16.500
36	72322-52S00-5PK	GARNISH,COWL TOP SIDE,L (BLACK)	1	Rp16.500
37	72331-52S00-000	SEAL,COWL TOP PANEL	1	Rp10.000
38	09409M07L02-5PK	CLIP (6.5X20.5,BLACK)	2	Rp7.500
