NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 560A - CHASSIS FRAME FIG. 565A - CROSSMEMBER FIG. 572A - TIRE CARRIER FIG. 580A - FRONT FENDER PANEL FIG. 590A - FRONT BODY PANEL (N_AC)FIG. 601A - FRONT FLOOR PANEL FIG. 630A - DECK FLOOR PANEL (SIG_GTBD)FIG. 635A - DECK GATE (SIG_GTBD)FIG. 635B - DECK GATE (TRE_GTBD)FIG. 640A - SIDE BODY PANEL FIG. 660A - ROOF PANEL FIG. 717A - FRONT BUMPER FIG. 721A - INSTRUMENT PANEL UPPER (N_AC)FIG. 721B - INSTRUMENT PANEL UPPER (W_MN_AC)FIG. 722A - INSTRUMENT PANEL LOWER FIG. 730A - VENTILATOR (W_MN_AC)FIG. 732A - HEATER UNIT (W_MN_AC)FIG. 735A - HEATER BLOWER (W_MN_AC)FIG. 736A - HEATER DOOR (W_MN_AC)FIG. 737A - EVAPORATOR UNIT (W_MN_AC)FIG. 740A - CONSOLE BOX FIG. 741A - FLOOR CARPET FIG. 750A - COVER/CAP FIG. 760A - ROOF LINING FIG. 773A - OPENING TRIM FIG. 780A - EMBLEM FIG. 790A - WINDSHIELD FIG. 800A - FRONT DOOR PANEL FIG. 810A - FRONT DOOR REGULATOR FIG. 820A - FRONT DOOR LOCK FIG. 835A - MIRROR/SUNVISOR FIG. 840A - SEAT BELT FIG. 848A - FRONT LH SEAT FIG. 849A - FRONT RH SEAT FIG. 865A - FUEL TANK FIG. 893A - TOOL FIG. 960A - CONDENSER (W_MN_AC)FIG. 966A - A/C PIPING (W_MN_AC)FIG. 990A - COMPRESSOR (W_MN_AC)FIG. 70JA MUD FLAP FIG. 73AA HEATER CONTROL (W_MN_AC)FIG. 630B - DECK FLOOR PANEL (TRE_GTBD)FIG. 590B - FRONT BODY PANEL (W_MN_AC)FIG. 630C DECK FLOOR PANEL (SPB)

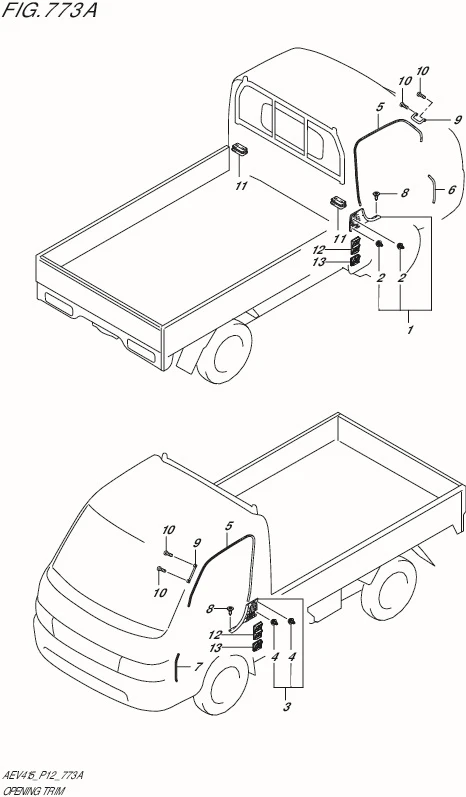

FIG. 773A - OPENING TRIM

FIG. 773A - OPENING TRIM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	76110-52S00-5PK	COVER,RETRACTOR,R (BLACK)	1	Rp41.000
2	09409-10327-000	.CLIP	2	Rp5.000
3	76120-52S00-5PK	COVER,RETRACTOR,L (BLACK)	1	Rp41.000
4	09409-10327-000	.CLIP	2	Rp5.000
5	76291-52S00-000	TRIM,DOOR OPENING UPPER	2	Rp112.500
6	76292-52S00-000	TRIM,DOOR OPENING LOWER DRVR	1	Rp40.500
7	76293-52S00-000	TRIM,DOOR OPENING LOWER ASST	1	Rp37.500
8	09409M07L02-5PK	CLIP (6.5X20.5,BLACK)	2	Rp7.500
9	76411-85410-4GF SUB: 76411M85410-000	GRIP,ASSISTANT	2	Rp24.000
10	09125-06041-000	SCREW (6X20)	4	Rp9.500
11	81121-78A31-000	CAP,CABIN BACK GUARD END	2	Rp50.500
12	77330-61JA0-000	OUTLET,VENTILATOR	2	Rp226.000
13	77330-65D00-000	OUTLET,VENTILATOR	2	Rp195.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
