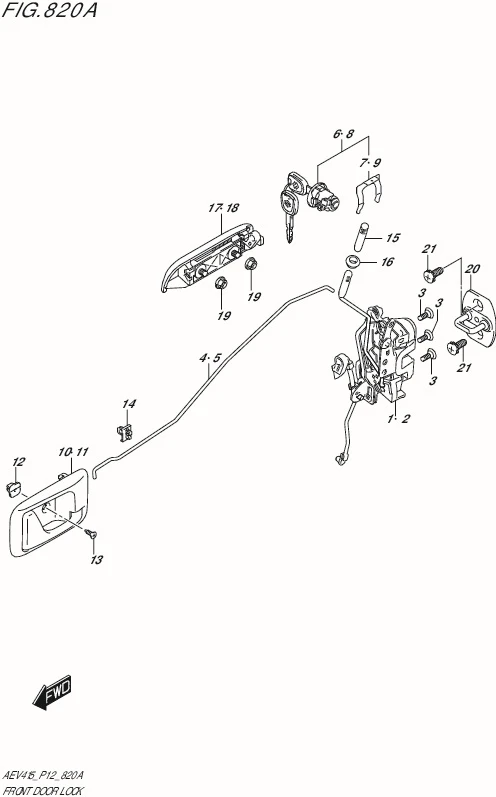

FIG. 820A - FRONT DOOR LOCK

FIG. 820A - FRONT DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82201-52S00-000	LATCH ASSY,FRONT DOOR,R	1	Rp118.000
2	82202-52S00-000	LATCH ASSY,FRONT DOOR,L	1	Rp118.000
3	09137-06028-000	SCREW (6X18)	6	Rp18.500
4	83121-52S00-000	ROD,FR DOOR INSIDE HANDLE,R	1	Rp11.500
5	83141-52S00-000	ROD,FR DOOR INSIDE HANDLE,L	1	Rp11.500
6	82270-52870-000	CYLINDER SET,FR DR LATCH,R	1	Rp337.500
7	89345-60B00-000	.CLIP,FUEL FILLER LID KEY LOCK	1	Rp25.500
8	82280-52870-000	CYLINDER SET,FR DR LATCH,L	1	Rp338.000
9	89345-60B00-000	.CLIP,FUEL FILLER LID KEY LOCK	1	Rp25.500
10	83110-75H00-P4Z	HANDLE,RR DOOR INSIDE,R (GRAY)	1	Rp209.000
11	83130-75H00-P4Z	HANDLE,RR DOOR INSIDE,L (GRAY)	1	Rp209.000
12	09148-05031-000	NUT (M5)	2	Rp18.000
13	03521M0516B-000	SCREW	2	Rp5.000
14	83271-84G00-000	CLIP	2	Rp29.000
15	82982M65D00-P4Z	KNOB,DOOR INSIDE LOCK (GRAY)	2	Rp7.500
16	82991-84000-000	CAP,DOOR INSIDE LOCK KNOB	2	Rp24.500
17	82801-67LA1-5PK SUB: 82801-67LA0-5PK	HANDLE ASSY SIDE DOOR OUT R	1	Rp119.000
18	82802-67LA1-5PK SUB: 82802-67LA0-5PK	HANDLE ASSY SIDE DOOR OUT L	1	Rp119.000
19	08316-1006A-000	NUT (6X12)	4	Rp2.000
20	82610-61J00-000	STRIKER,SIDE DOOR	2	Rp19.500
21	09137-08014-000	SCREW (8X18)	4	Rp23.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
