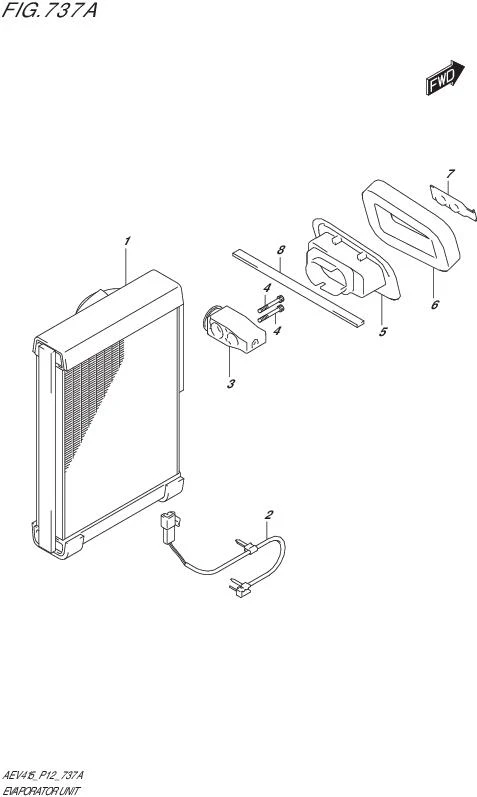

FIG. 737A - EVAPORATOR UNIT (W_MN_AC)

FIG. 737A - EVAPORATOR UNIT (W_MN_AC)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	95411M53M00-000	EVAPORATOR S/ASSY	1	Rp627.500
2	95541M68K30-000	THERMISTOR	1	Rp112.500
3	95431M67P00-000	VALVE,EXPANSION	1	Rp591.500
4	74134-58J00-000 SUB: 74134B58J00N000	BOLT	2	Rp14.000
5	74110M53MA0-000	EXPANSION VALVE COVER	1	Rp9.000
6	95464M53M10-000	PACKING	1	Rp23.000
7	74166M66L00-000	PLUG,THERMO EXPANSION VALVE	1	Rp5.000
8	95465M52S00-000	PACKING	1	Rp43.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
