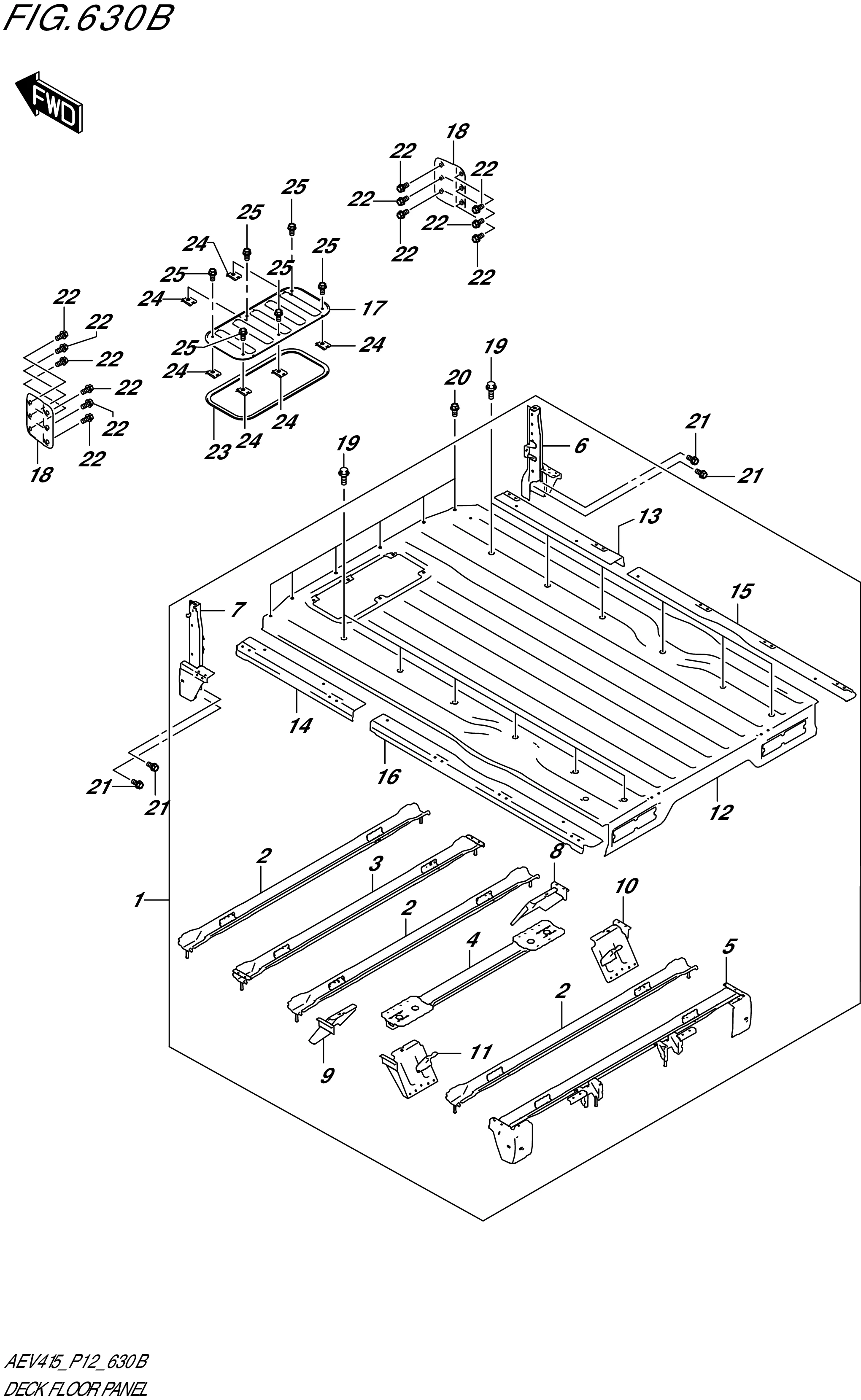

FIG. 630B - DECK FLOOR PANEL (TRE_GTBD)

FIG. 630B - DECK FLOOR PANEL (TRE_GTBD)
No No. Part Description Qty Price Per Pcs Remarks
1 66100-52S22-000
SUB: 66100-52S20-000		 PANEL ASSY,DECK FLOOR 1 Rp6.972.500
2 66110-52S21-000
SUB: 66110-52S20-000		 .CROSSMEMBER,DECK FLOOR 3 Rp447.500
3 66120-52S21-000
SUB: 66120-52S20-000		 .CROSSMEMBER,DECK FLOOR 1 Rp471.500
4 66130-52S00-000 .CROSSMEMBER,DECK FL NO.4 1 Rp329.500
5 66150-52S20-000 .CROSSMEMBER,DECK FL NO.6 1 Rp925.500
6 66210-52S20-000 .PANEL,DECK SIDE FRONT,R 1 Rp499.500
7 66220-52S20-000 .PANEL,DECK SIDE FRONT,L 1 Rp499.500
8 66340-52S20-000 .FENDER,DECK FRONT,R 1 Rp118.500
9 66350-52S20-000 .FENDER,DECK FRONT,L 1 Rp118.500
10 66360-52S20-000 .FENDER,DECK REAR,R 1 Rp137.000
11 66370-52S20-000 .FENDER,DECK REAR,L 1 Rp137.000
12 66411-52S00-000 .PANEL,DECK FLOOR 1 Rp3.552.500
13 66412-52S20-000 .PANEL,DECK FLOOR SIDE FR,R 1 Rp166.500
14 66413-52S20-000 .PANEL,DECK FLOOR SIDE FR,L 1 Rp316.500
15 66414-52S20-000 .PANEL,DECK FLOOR SIDE RR,R 1 Rp465.500
16 66415-52S20-000 .PANEL,DECK FLOOR SIDE RR,L 1 Rp465.500
17 67910-52S00-000 PANEL,FLOOR SERVICE LID 1 Rp324.500
18 67921-52S10-000 STAY,SIDE GATE 2 Rp56.000
19 09112-10015-000 BOLT,10X40 12 Rp26.500
20 01551-1020A-000 BOLT 6 Rp18.000
21 01551-1020A-000 BOLT 4 Rp18.000
22 01551-1020A-000 BOLT 12 Rp18.000
23 72812-52S00-000 SEAL,FLOOR SERVICE LID 1 Rp91.000
24 09148-08005-000 NUT 6 Rp27.500
25 72813-52S00-000 BOLT 6 Rp26.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
