NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 560A - CHASSIS FRAME FIG. 565A - CROSSMEMBER FIG. 572A - TIRE CARRIER FIG. 580A - FRONT FENDER PANEL FIG. 590A - FRONT BODY PANEL (N_AC)FIG. 601A - FRONT FLOOR PANEL FIG. 630A - DECK FLOOR PANEL (SIG_GTBD)FIG. 635A - DECK GATE (SIG_GTBD)FIG. 635B - DECK GATE (TRE_GTBD)FIG. 640A - SIDE BODY PANEL FIG. 660A - ROOF PANEL FIG. 717A - FRONT BUMPER FIG. 721A - INSTRUMENT PANEL UPPER (N_AC)FIG. 721B - INSTRUMENT PANEL UPPER (W_MN_AC)FIG. 722A - INSTRUMENT PANEL LOWER FIG. 730A - VENTILATOR (W_MN_AC)FIG. 732A - HEATER UNIT (W_MN_AC)FIG. 735A - HEATER BLOWER (W_MN_AC)FIG. 736A - HEATER DOOR (W_MN_AC)FIG. 737A - EVAPORATOR UNIT (W_MN_AC)FIG. 740A - CONSOLE BOX FIG. 741A - FLOOR CARPET FIG. 750A - COVER/CAP FIG. 760A - ROOF LINING FIG. 773A - OPENING TRIM FIG. 780A - EMBLEM FIG. 790A - WINDSHIELD FIG. 800A - FRONT DOOR PANEL FIG. 810A - FRONT DOOR REGULATOR FIG. 820A - FRONT DOOR LOCK FIG. 835A - MIRROR/SUNVISOR FIG. 840A - SEAT BELT FIG. 848A - FRONT LH SEAT FIG. 849A - FRONT RH SEAT FIG. 865A - FUEL TANK FIG. 893A - TOOL FIG. 960A - CONDENSER (W_MN_AC)FIG. 966A - A/C PIPING (W_MN_AC)FIG. 990A - COMPRESSOR (W_MN_AC)FIG. 70JA MUD FLAP FIG. 73AA HEATER CONTROL (W_MN_AC)FIG. 630B - DECK FLOOR PANEL (TRE_GTBD)FIG. 590B - FRONT BODY PANEL (W_MN_AC)FIG. 630C DECK FLOOR PANEL (SPB)

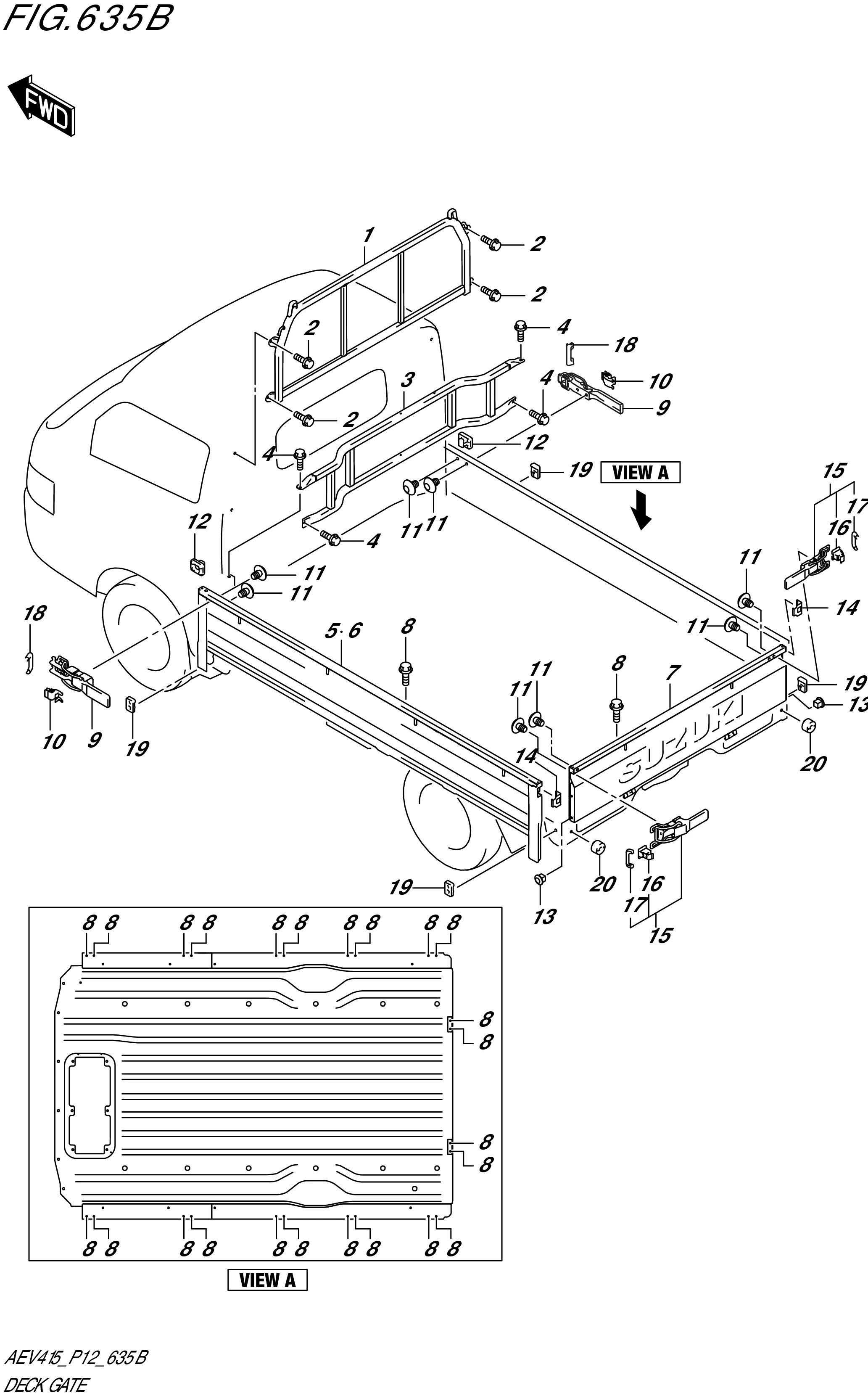

FIG. 635B - DECK GATE (TRE_GTBD)

FIG. 635B - DECK GATE (TRE_GTBD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	65930-52S00-000	GUARD,CABIN BACK	1	Rp707.000
2	01551-0816C-000	BOLT	4	Rp13.500
3	65940-52S10-000	GUARD,DECK FRONT	1	Rp618.000
4	01551-1020A-000	BOLT	4	Rp18.000
5	DISCONTINUE SUB: 67100-52S20-000	PANEL ASSY,SIDE GATE,R	1	-
6	DISCONTINUE SUB: 67400-52S20-000	PANEL ASSY,SIDE GATE,L	1	-
7	67700-52S22-000 SUB: 67700-52S20-000	PANEL ASSY,REAR GATE	1	Rp1.029.500
8	09116-06168-000	BOLT (6X16)	24	Rp15.000
9	72840-52S00-000	HANDLE,SIDE GATE LOCK	2	Rp377.000
10	72847-52S00-000	SPACER,GATE HANDLE LINK	2	Rp17.000
11	72849-78A01-000	SCREW,GATE LOCK HANDLE	8	Rp32.500
12	72851-67H01-000	CUSHION,SIDE GATE FRONT	2	Rp59.000
13	72866-60C00-000	STOPPER,REAR GATE OPEN	2	Rp26.500
14	72867-61JA0-000	PROTECTOR,SIDE GATE REAR	2	Rp38.000
15	72870-78A33-000	HANDLE,SIDE GATE LOCK	2	Rp456.000
16	72847-78A00-000	.STOPPER,GATE LOCK HANDLE OPEN	2	Rp32.000
17	72893-78A31-000	.PROTECTOR,GATE LOCK HANDLE	2	Rp48.000
18	72893-52S00-000	PROTECTOR,GATE LOCK HANDLE	2	Rp17.500
19	73941-52S00-000	STOPPER,GATE OPEN	4	Rp62.000
20	73941-67H00-000	STOPPER,GATE OPEN	2	Rp66.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
