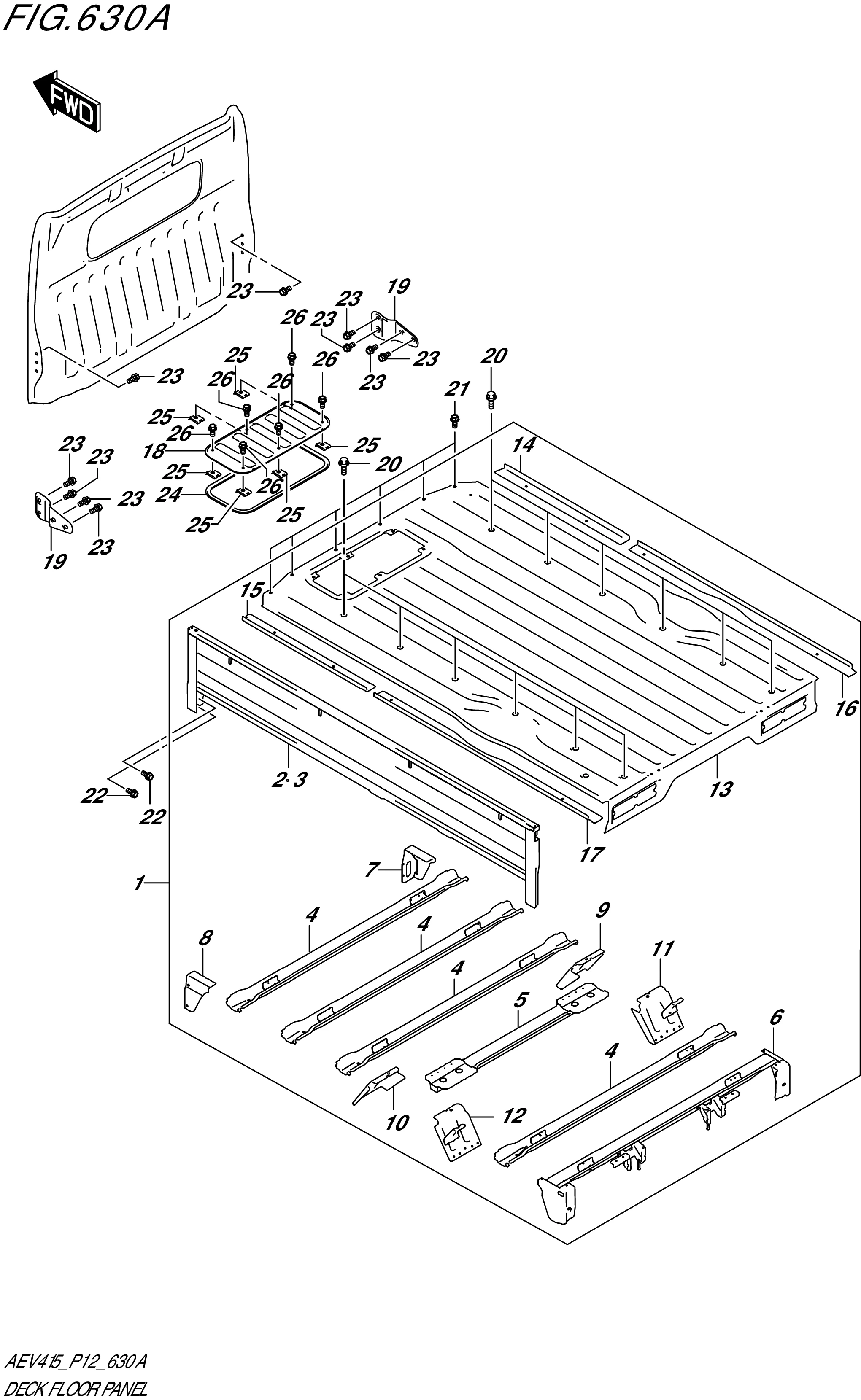

FIG. 630A - DECK FLOOR PANEL (SIG_GTBD)

FIG. 630A - DECK FLOOR PANEL (SIG_GTBD)
No No. Part Description Qty Price Per Pcs Remarks
1 66100-52810-000 PANEL SET,DECK FLOOR 1 Rp9.047.500
2 67100-52S00-000 .PANEL ASSY,SIDE GATE,R 1 Rp1.991.000
3 67400-52S01-000
SUB: 67400-52S00-000		 .PANEL ASSY,SIDE GATE,L 1 Rp1.991.000
4 66110-52S01-000
SUB: 66110-52S00-000		 .CROSSMEMBER,DECK FLOOR 4 Rp812.500
5 66130-52S00-000 .CROSSMEMBER,DECK FL NO.4 1 Rp329.500
6 66150-52S01-000
SUB: 66150-52S00-000		 .CROSSMEMBER,DECK FL NO.6 1 Rp849.000
7 66210-52S01-000
SUB: 66210-52S00-000		 .PANEL,DECK SIDE FRONT,R 1 Rp117.500
8 66220-52S01-000
SUB: 66220-52S00-000		 .PANEL,DECK SIDE FRONT,L 1 Rp117.500
9 66341-52S00-000 .FENDER,DECK FRONT,R 1 Rp104.500
10 66351-52S00-000 .FENDER,DECK FRONT,L 1 Rp104.500
11 66360-52S01-000
SUB: 66360-52S00-000		 .FENDER,DECK REAR,R 1 Rp122.500
12 66370-52S01-000
SUB: 66370-52S00-000		 .FENDER,DECK REAR,L 1 Rp122.500
13 66411-52S00-000 .PANEL,DECK FLOOR 1 Rp3.552.500
14 66412-52S01-000
SUB: 66412-52S00-000		 .PANEL,DECK FLOOR SIDE FR,R 1 Rp165.500
15 66413-52S01-000
SUB: 66413-52S00-000		 .PANEL,DECK FLOOR SIDE FR,L 1 Rp165.500
16 66414-52S01-000
SUB: 66414-52S00-000		 .PANEL,DECK FLOOR SIDE RR,R 1 Rp165.500
17 66415-52S01-000
SUB: 66415-52S00-000		 .PANEL,DECK FLOOR SIDE RR,L 1 Rp165.500
18 67910-52S00-000 PANEL,FLOOR SERVICE LID 1 Rp324.500
19 67921-52S00-000 STAY,SIDE GATE 2 Rp128.500
20 09112-10015-000 BOLT,10X40 12 Rp26.500
21 01551-1020A-000 BOLT 6 Rp18.000
22 01551-1020A-000 BOLT 4 Rp18.000
23 01551-1020A-000 BOLT 10 Rp18.000
24 72812-52S00-000 SEAL,FLOOR SERVICE LID 1 Rp91.000
25 09148-08005-000 NUT 6 Rp27.500
26 72813-52S00-000 BOLT 6 Rp26.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
