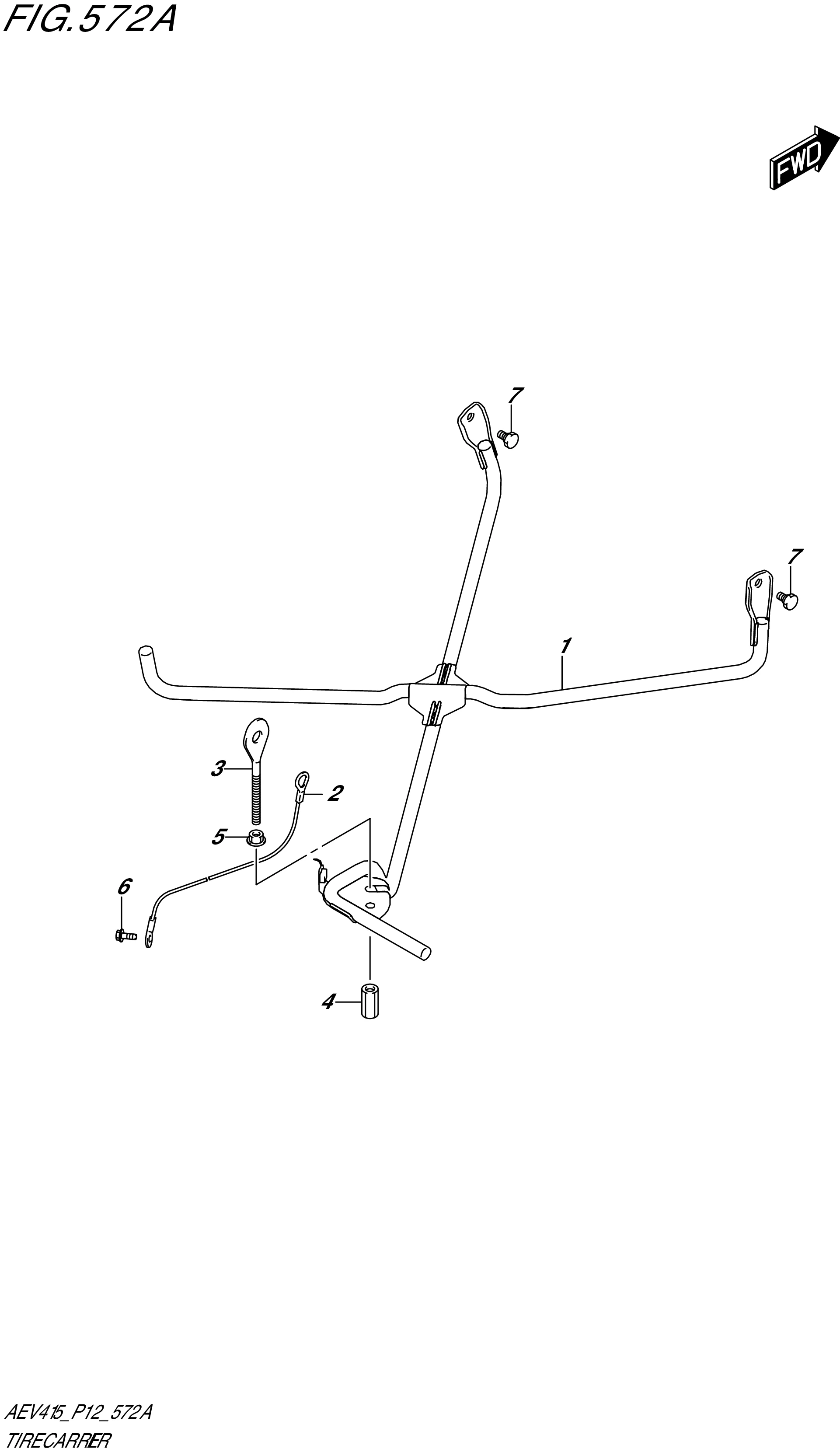

FIG. 572A - TIRE CARRIER

FIG. 572A - TIRE CARRIER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71510-52S00-000	CARRIER,SPARE TIRE	1	Rp215.500
2	71560-61J00-000	CABLE,SPARE TIRE CARRIER	1	Rp18.000
3	71521-61JA0-000	BOLT,SPARE TIRE CARRIER	1	Rp48.000
4	71522-78A01-000	NUT,SPARE TIRE CARRIER LOWER	1	Rp61.500
5	08316-1010A-000	NUT	1	Rp3.500
6	02162-0616A-000	SCREW (6X16)	1	Rp3.000
7	09111-08101-000	BOLT,SPARE TIRE CARRIER	2	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
