NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 560A - CHASSIS FRAME FIG. 565A - CROSSMEMBER FIG. 572A - TIRE CARRIER FIG. 580A - FRONT FENDER PANEL FIG. 590A - FRONT BODY PANEL (N_AC)FIG. 601A - FRONT FLOOR PANEL FIG. 630A - DECK FLOOR PANEL (SIG_GTBD)FIG. 635A - DECK GATE (SIG_GTBD)FIG. 635B - DECK GATE (TRE_GTBD)FIG. 640A - SIDE BODY PANEL FIG. 660A - ROOF PANEL FIG. 717A - FRONT BUMPER FIG. 721A - INSTRUMENT PANEL UPPER (N_AC)FIG. 721B - INSTRUMENT PANEL UPPER (W_MN_AC)FIG. 722A - INSTRUMENT PANEL LOWER FIG. 730A - VENTILATOR (W_MN_AC)FIG. 732A - HEATER UNIT (W_MN_AC)FIG. 735A - HEATER BLOWER (W_MN_AC)FIG. 736A - HEATER DOOR (W_MN_AC)FIG. 737A - EVAPORATOR UNIT (W_MN_AC)FIG. 740A - CONSOLE BOX FIG. 741A - FLOOR CARPET FIG. 750A - COVER/CAP FIG. 760A - ROOF LINING FIG. 773A - OPENING TRIM FIG. 780A - EMBLEM FIG. 790A - WINDSHIELD FIG. 800A - FRONT DOOR PANEL FIG. 810A - FRONT DOOR REGULATOR FIG. 820A - FRONT DOOR LOCK FIG. 835A - MIRROR/SUNVISOR FIG. 840A - SEAT BELT FIG. 848A - FRONT LH SEAT FIG. 849A - FRONT RH SEAT FIG. 865A - FUEL TANK FIG. 893A - TOOL FIG. 960A - CONDENSER (W_MN_AC)FIG. 966A - A/C PIPING (W_MN_AC)FIG. 990A - COMPRESSOR (W_MN_AC)FIG. 70JA MUD FLAP FIG. 73AA HEATER CONTROL (W_MN_AC)FIG. 630B - DECK FLOOR PANEL (TRE_GTBD)FIG. 590B - FRONT BODY PANEL (W_MN_AC)FIG. 630C DECK FLOOR PANEL (SPB)

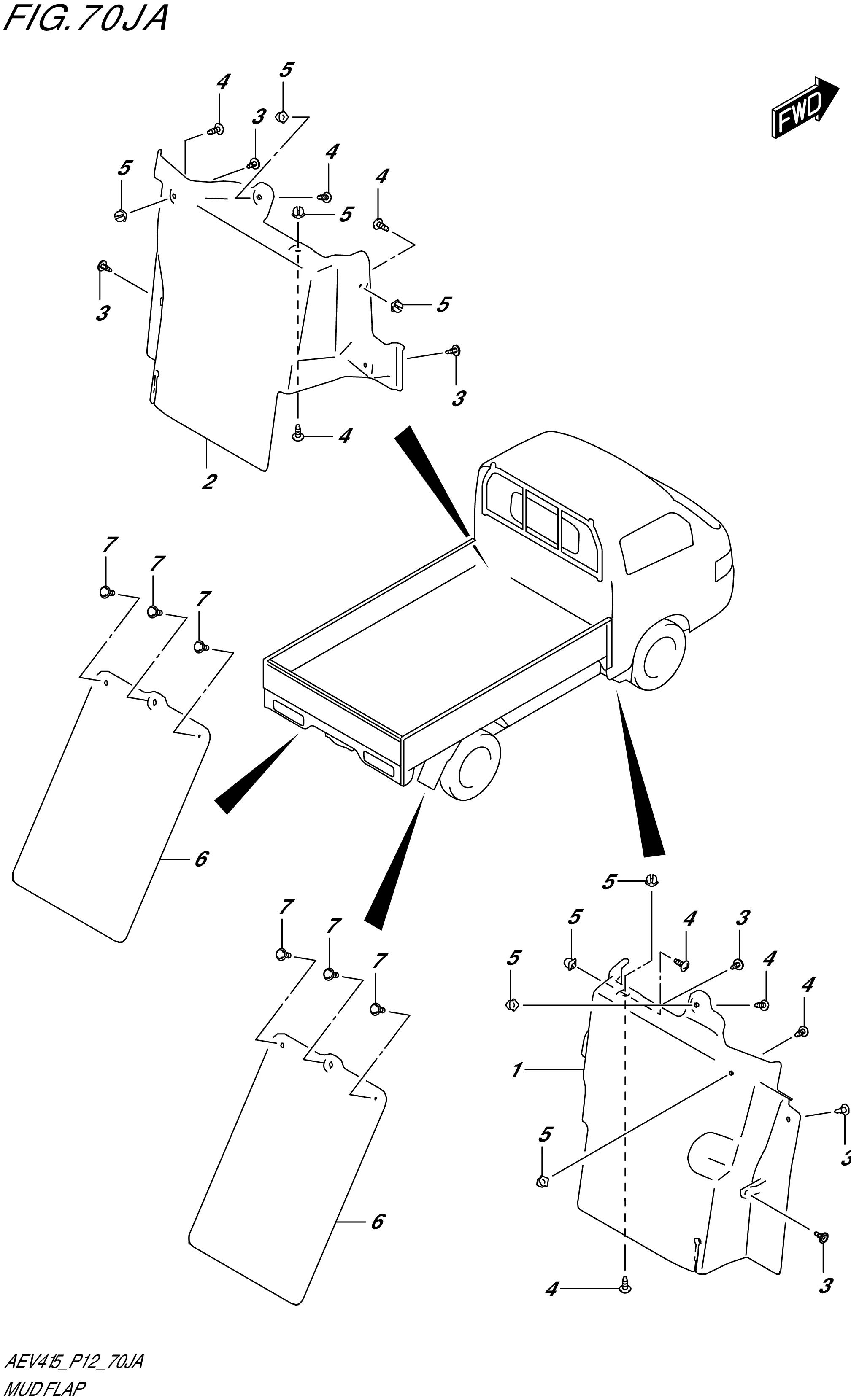

FIG. 70JA MUD FLAP

FIG. 70JA MUD FLAP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	72211-52S00-000	FLAP,FRONT MUD,R	1	Rp66.500
2	72221-52S00-000	FLAP,FRONT MUD,L	1	Rp66.500
3	09409-06322-5PK	CLIP	6	Rp19.000
4	09132-05053-000	SCREW (5X16)	8	Rp14.000
5	09148-05018-000	NUT (M5)	8	Rp11.500
6	72261-52S00-000	FLAP,REAR MUD	2	Rp38.000	SIG_GTBD,TRE_GTBD
7	72435-74P00-000	SCREW	6	Rp18.500	SIG_GTBD,TRE_GTBD

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
