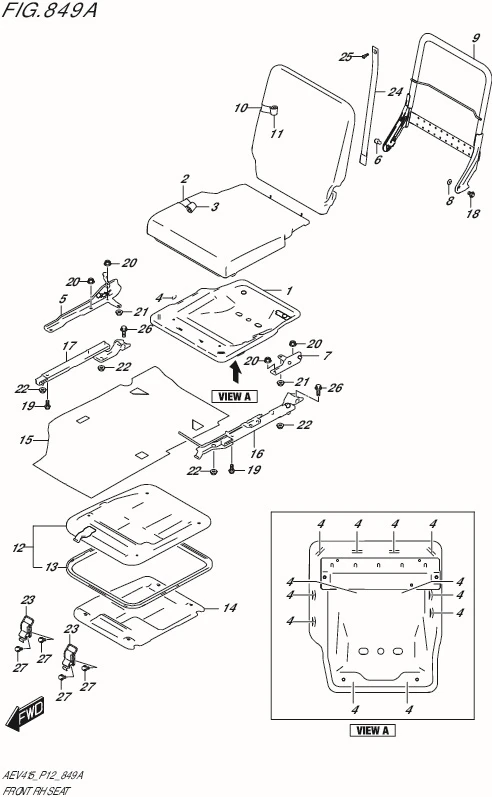

FIG. 849A - FRONT RH SEAT

FIG. 849A - FRONT RH SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 85110-52S00-000 FRAME,FR CUSH,R 1 Rp349.500
2 85160-52S00-000 PAD,FR CUSH,R 1 Rp285.500
3 85180-52S00-DTY TRIM,FR CUSH,R 1 Rp218.500
4 09387-19001-000 RING (OD:22.6) 12 Rp9.000
5 85120-52S00-000 BRACKET,FR CUSH OUTSIDE,R 1 Rp197.500
6 85126-52S00-000 BOLT,BACK HINGE OUTER 1 Rp7.500
7 85130-52S00-000 BRACKET,FR CUSH INSIDE,R 1 Rp156.000
8 85134-52S00-000 BUSH,FR BACK HINGE 1 Rp5.500
9 85310-52S00-000 FRAME,FR BACK,R 1 Rp361.500
10 85360-52S00-000 PAD,FR BACK 1 Rp337.000
11 85380-52S00-DTY TRIM,FR BACK 1 Rp318.500
12 85410-52S00-000 PANEL ASSY,FR RISER,R 1 Rp411.500
13 85428-52S00-000 .WEATHERSTRIP,FR RISER 1 Rp115.000
14 85427-52S00-000 INSULATOR,FR RISER,R 1 Rp399.500
15 85430-52S00-S01 CARPET,FRONT RISER,R (GRAY) 1 Rp181.000
16 86610-52S00-000 ADJUSTER ASSY,FR INSIDE,R 1 Rp252.000
17 86630-52S00-000 ADJUSTER ASSY,FR OUTSIDE 1 Rp170.000
18 09100-08294-000 BOLT (8X13) 1 Rp18.000
19 01820-0820A-000 BOLT 2 Rp19.000
20 08316-1008A-000 NUT 4 Rp3.500
21 08316-1008A-000 NUT 2 Rp3.500
22 08361-2508A-000 NUT 4 Rp16.500
23 86650-61JA0-000 LOCK ASSY,FR 2 Rp40.000
24 86710-52S00-000 BAND,CUSH STOPPER 1 Rp34.500
25 09139-06040-000 SCREW (6X20) 1 Rp13.500
26 01551-1020A-000 BOLT 2 Rp18.000
27 01570-0612A-000 BOLT 4 Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
