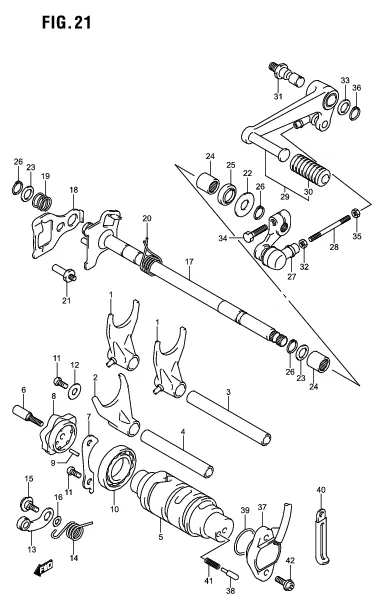

FIG. 21 GEAR SHIFTING

FIG. 21 GEAR SHIFTING
No No. Part Description Qty Price Per Pcs Remarks
1 25211-48H00-000 FORK, GEAR SHIFT NO.1 2 Rp73.500
2 25221-48H00-000 FORK, GEAR SHIFT NO.2 1 Rp73.000
3 25411-48H00-000 SHAFT, GEAR SHIFT FORK NO.1 1 Rp48.500
4 25421-48H00-000 SHAFT, GEAR SHIFT FORK NO.2 1 Rp47.000
5 25311-48H00-000 CAM, GEAR SHIFT 1 Rp250.000
6 25312-48H00-000 STOPPER, SHIFT CAM DRIVE PLATE 1 Rp31.500
7 25341-48H00-000 RETAINER, SHIFT CAM BEARING 1 Rp21.000
8 25380-48H02-000
SUB: 25380-48H00-000		 PLATE, GEAR SHIFT CAM 1 Rp120.500
9 09261-03002-000 PIN (3X9.8) 2 Rp2.500
10 09262-25L01-000 BEARING (25X47X8) 1 Rp72.500
11 02112-0612A-000 SCREW 3 Rp3.500
12 08211-06183-000 RETAINER 1 Rp10.000
13 25350-48H00-000 STOPPER, GEAR SHIFT CAM 1 Rp61.500
14 25355-48H00-000 SPRING, GEAR SHIFT CAM STOPPER 1 Rp18.500
15 09106-06131-000 BOLT (6X14.5) 1 Rp16.500
16 08211-06121-000 WASHER 1 Rp7.500
17 25510-48H00-000 SHAFT, GEAR SHIFT 1 Rp302.000
18 25512-48H00-000 PLATE, GEAR SHIFT CAM DRIVE 1 Rp52.000
19 25515-48H01-000
SUB: 25515-48H00-000		 SPRING, SHIFT PLATE RETURN 1 Rp21.500
20 25518-48H00-000 SPRING, SHIFT SHAFT RETURN 1 Rp25.500
21 DISCONTINUE
SUB: 25671-16H10-000		 STOPPER, GEAR SHIFT ARM 1 -
22 09160-14069-000 WASHER (14X29X0.8) 1 Rp23.500
23 09160-14070-000 WASHER (14X22X1) 2 Rp14.500
24 09263-14035-000
SUB: 09263-14L01-000		 BEARING (14X20X12) 2 Rp59.000
25 09283-14L01-000 SEAL 1 Rp38.500
26 08331-3114A-000 CIRCLIP 3 Rp12.500
27 25520-48H10-000 ARM, GEAR SHIFT LINK 1 Rp665.500
28 25525-48H00-000 ROD, GEAR SHIFT LINK 1 Rp39.500
29 25600-48H11-000
SUB: 25600-48H10-000		 LEVER ASSY, GEAR SHIFT 1 Rp916.500
30 25652-48H00-000 .RUBBER, GEAR SHIFT PEDAL 1 Rp55.000
31 25617-03F20-000 SHAFT, GEAR SHIFT LEVER 1 Rp85.500
32 09140-06031-000 NUT 1 Rp15.000
33 09160-12011-000 WASHER (12.5X20X1) 1 Rp10.500
34 01500-0620A-000 BOLT 1 Rp4.500
35 08310-0006A-000 NUT 1 Rp2.500
36 08331-3112A-000 CIRCLIP 1 Rp13.000
37 37730-20K01-000
SUB: 37730-48H00-000		 BASE ASSY, GEAR SHIFT TERM 1 Rp210.500
38 09209-05024-000 CONTACT 2 Rp15.500
39 09280-26005-000 O RING (D:2.4,ID:26.2) 1 Rp3.000
40 DISCONTINUE
SUB: 09404-06206-000		 CLAMP (L:60) 1 -
41 09440-04010-000 SPRING 2 Rp3.000
42 07120-0516A-000 BOLT 2 Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
