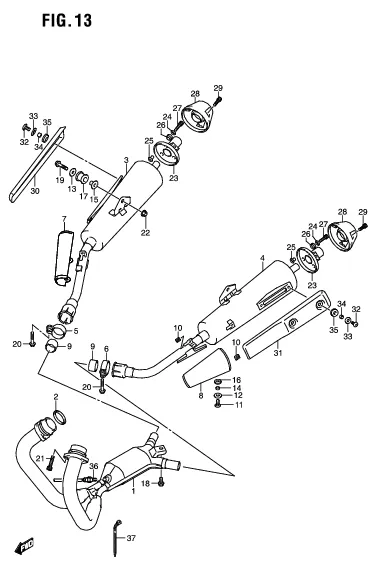

FIG. 13 MUFFLER

FIG. 13 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14100-48H01-000
SUB: 14100-48H00-000		 EXHAUST 1 Rp12.864.000
2 14181-46E20-000 GASKET, EXHAUST PIPE 2 Rp51.000
3 DISCONTINUE
SUB: 14305-48H00-000		 MUFFLER RH 1 -
4 DISCONTINUE
SUB: 14306-48H01-000		 MUFFLER LH 1 -
5 14459-48H00-000 CLAMP, MUFFLER CONNECTOR RH 1 Rp38.000
6 14469-48H00-000 CLAMP, MUFFLER CONNECTOR LH 1 Rp40.500
7 14750-48H00-000 COVER, MUFFLER FRONT RH 1 Rp397.000
8 14760-48H00-000 COVER, MUFFLER FRONT LH 1 Rp397.000
9 14771-38F10-000 CONNECTOR, JOINT 2 Rp109.000
10 14795-10FA0-000 GROMMET 3 Rp5.500
11 09139-06030-000 SCREW (6X16) 4 Rp26.000
12 09160-06164-000 WASHER (6.5X18.0X1.0) 4 Rp9.500
13 09160-08149-000 WASHER (8.5X30X1.6) 2 Rp6.500
14 09180-06365-000 SPACER (6.5X9X5) 4 Rp7.500
15 09180-08L02-000 SPACER 2 Rp17.500
16 09320-08082-000 CUSHION 4 Rp10.500
17 09320-12L04-000 CUSHION 2 Rp11.500
18 01550-0816A-000 BOLT 1 Rp6.000
19 01550-0840A-000 BOLT 2 Rp3.500
20 01550-0840A-000 BOLT 2 Rp3.500
21 07130-0830A-000 BOLT 4 Rp33.500
22 08316-1008A-000 NUT 2 Rp3.500
23 14770-48H01-000
SUB: 14770-48H00-000		 STAY, MUFFLER REAR COVER 2 Rp126.500
24 09160-06028-000 WASHER (6.5X18X1) 6 Rp3.500
25 09180-06331-000 SPACER (6.2X8.4X10.9) 6 Rp28.000
26 09320-08068-000 CUSHION 6 Rp102.000
27 07130-0620A-000 BOLT 6 Rp16.500
28 14790-48H01-YYK
SUB: 14790-48H00-YYK		 COVER, MUFFLER REAR (YYK) 2 Rp623.000
29 07130-0616A-000 BOLT 6 Rp3.500
30 14781-48H00-000 COVER, MUFFLER BODY RH 1 Rp417.500
31 14730-48H00-000 COVER, MUFFLER BODY LH 1 Rp430.500
32 09139-06030-000 SCREW (6X16) 4 Rp26.000
33 09160-06164-000 WASHER (6.5X18.0X1.0) 4 Rp9.500
34 09180-06365-000 SPACER (6.5X9X5) 4 Rp7.500
35 09320-08082-000 CUSHION 4 Rp10.500
36 18213-23H01-000 SENSOR, OXYGEN 1 Rp2.360.000
37 36990-32G20-000 CLAMP, OXYGEN SENSOR LEAD 1 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
