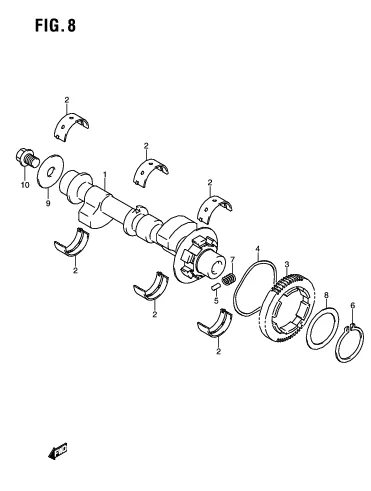

FIG. 8 CRANK BALANCER

FIG. 8 CRANK BALANCER
No No. Part Description Qty Price Per Pcs Remarks
1 12650-48H00-000 BALANCER, CRANK 1 Rp1.924.500
1-Feb 12229-48H00-0A0 BEARING, CRANK BALANCER (GREEN) 6 Rp122.500
2-Feb 12229-48H00-0B0 BEARING, CRANK BALANCER (BLACK) 6 Rp122.500
3-Feb 12229-48H00-0C0 BEARING, CRANK BALANCER (BROWN) 6 Rp122.500
3 12666-48H01-000
SUB: 12666-48H00-000		 GEAR, CRANK BALANCER DRIVEN (NT:49) 1 Rp391.000
4-Feb 12229-48H00-0D0 BEARING, CRANK BALANCER (YELLOW) 6 Rp122.500
4 09164-60001-000 WASHER 1 Rp129.500
5 DISCONTINUE
SUB: 09202-04017-000		 PIN (4.5X9.5) 3 -
6 09380-38008-000 CIRCLIP 1 Rp12.000
7 09440-09031-000 SPRING 6 Rp22.000
8 08211-38521-000 WASHER 1 Rp18.000
9 09160-10151-000 WASHER (10X37X3) 1 Rp19.000
10 01550-1016A-000 BOLT 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
