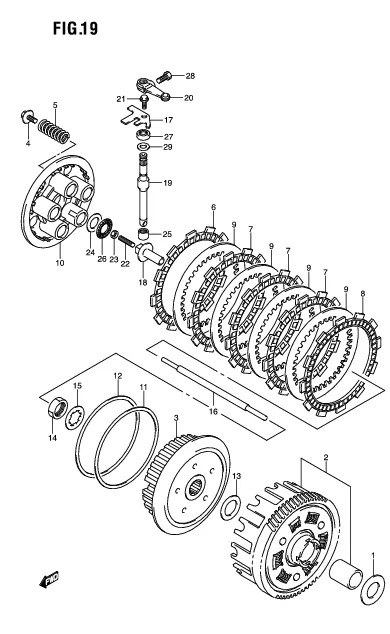

FIG. 19 CLUTCH

FIG. 19 CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 21252-48H00-000 WASHER, THRUST 1 Rp30.000
2 21200-48880-000
SUB: 21200-48870-000		 GEAR ASSY, PRIMARY DRIVEN (NT:68) 1 Rp1.629.500
3 21411-48H00-000 HUB, CLUTCH SLEEVE 1 Rp346.500
4 21412-48H00-000 BOLT, CLUTCH SPRING 5 Rp18.000
5 21413-48H00-000 SPRING, CLUTCH 5 Rp29.000
6 21441-48H00-000 PLATE, CLUTCH DRIVE NO.1 (T:3.0) 1 Rp318.500
7 21441-48H10-000 PLATE, CLUTCH DRIVE NO.2 (T:3.0) 3 Rp318.000
8 21442-48H00-000 PLATE, CLUTCH DRIVE NO.3 (T:3.5) 1 Rp329.500
9 21451-48H00-000 PLATE, CLUTCH DRIVEN (T:2.0) 4 Rp45.000
10 21462-48H00-000 DISC, CLUTCH PRESSURE 1 Rp192.500
11 21471-48H00-000 SEAT, WAVE WASHER 1 Rp57.500
12 21472-48H00-000 WASHER, CLUTCH SLEEVE HUB WAVE 1 Rp86.500
13 08211-22363-000 WASHER 1 Rp18.500
14 09140-22005-000 NUT 1 Rp18.500
15 09167-22029-000 LOCK WASHER 1 Rp9.000
16 23110-48H00-000 ROD, CLUTCH PUSH 1 Rp67.500
17 23117-48H00-000 RETAINER, CL RELEASE OIL SEAL 1 Rp21.500
18 23121-48H00-000 PIECE, CLUTCH PUSH 1 Rp85.000
19 23122-48H02-000
SUB: 23122-48H01-000		 CAMSHAFT, CLUTCH RELEASE 1 Rp107.500
20 23271-48H00-000 ARM, CLUTCH RELEASE 1 Rp56.500
21 09103-06233-000 BOLT (6X12) 1 Rp18.000
22 09134-06018-000 SCREW (6X25) 1 Rp21.000
23 09140-06023-000 NUT 1 Rp11.500
24 09160-15045-000 WASHER (15.5X28X1) 1 Rp23.500
25 09263-10023-000
SUB: 09263-10L01-000		 BEARING (10X14X10) 1 Rp58.500
26 09263-15L01-000 BEARING (15X28X2) 1 Rp50.000
27 09285-10L01-000 SEAL 1 Rp28.000
28 01500-0616A-000 BOLT 1 Rp6.500
29 DISCONTINUE
SUB: 09160-12119-000		 WASHER (12.5X17X1) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
