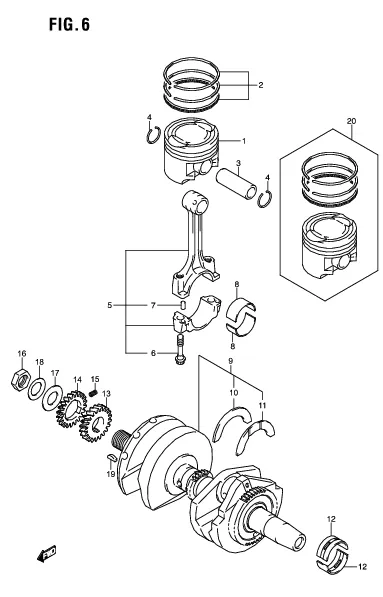

FIG. 6 CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs
1-Dec	12229-48H10-0A0	BEARING, CRANKSHAFT (YELLOW)	8	Rp207.000
1-Aug	12164-39F00-0A0	BEARING, CRANK PIN (GREEN)	4	Rp81.500
1	12111-48H00-0F0	PISTON (YELLOW)	2	Rp168.500
1-Nov	12228-17E00-0E0	.BEARING, THRUST RH (YELLOW)	1	Rp67.500
2	12140-48H00-000	RING SET, PISTON	2	Rp115.500
2-Dec	12229-48H10-0B0	BEARING, CRANKSHAFT (BLACK)	8	Rp209.500
2-Aug	12164-39F00-0B0	BEARING, CRANK PIN (BLACK)	4	Rp82.500
2-Nov	12228-17E00-0F0	.BEARING, THRUST RH (WHITE)	1	Rp68.000
3	12151-48H00-000	PIN, PISTON	2	Rp48.500
3-Dec	12229-48H10-0C0	BEARING ,CRANKSHAFT (BROWN)	8	Rp207.000
3-Aug	12164-39F00-0C0	BEARING, CRANK PIN (BROWN)	4	Rp82.500
3-Nov	12228-17E00-0G0	.BEARING, THRUST RH (ORANGE)	1	Rp70.000
4-Nov	12228-17E00-0H0	.BEARING, THRUST RH (PINK)	1	Rp70.000
4-Dec	12229-48H10-0D0	BEARING, CRANKSHAFT (YELLOW)	8	Rp209.500
4	09381-15001-000	CIRCLIP	4	Rp10.500
4-Aug	12164-39F00-0D0	BEARING, CRANK PIN (YELLOW)	4	Rp81.500
5-Nov	12228-17E00-0J0	.BEARING, THRUST RH (BROWN)	1	Rp69.000
5	12160-48H00-000	CONNROD ASSY	2	Rp1.733.500
6-Nov	12228-17E00-0K0	.BEARING, THRUST RH (PURPLE)	1	Rp70.000
6	12163-35F00-000	.BOLT, CONNROD	4	Rp65.000
7-Nov	12228-17E00-0L0	.BEARING, THRUST RH (NO COLOR)	1	Rp70.000
7	04221-04089-000	.PIN	4	Rp3.500
9	12200-48830-000	CRANKSHAFT SET	1	Rp18.651.000
10	12228-17E00-0E0	.BEARING, THRUST LH (YELLOW)	1	Rp67.500
13	21111-48H00-000	GEAR, PRIMARY DRIVE (NT:21)	1	Rp272.000
14	21112-48H00-000	GEAR, PRIMARY DRIVE NO.2 (NT:21)	1	Rp148.000
15	21114-35C00-000	SPRING, PRI DRIVE GEAR	3	Rp23.000
16	09140-18023-000	NUT	1	Rp23.000
17	DISCONTINUE SUB: 09160-18039-000	WASHER (18X36X1.5)	1	-
18	09164-18012-000	WASHER	1	Rp9.500
19	09420-04008-000	KEY	1	Rp23.000
20	12100-48H00-050	PISTON SET (OS 0.5) OPT	2	Rp970.000
