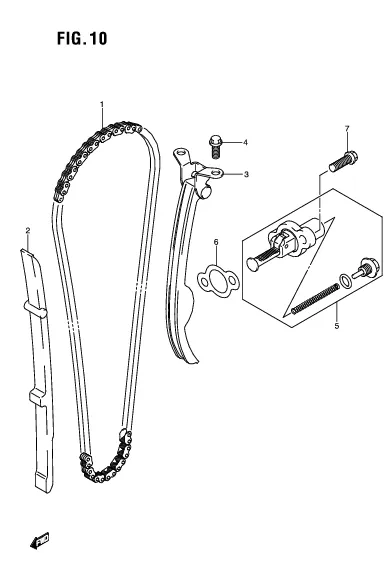

FIG. 10 CAM CHAIN

FIG. 10 CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12760-48H10-000
SUB: 12760-48H00-000		 CHAIN, CAMSHAFT DRIVE 1 Rp670.000
2 12771-48H01-000
SUB: 12771-48H00-000		 GUIDE, CAM CHAIN 1 Rp200.500
3 12810-48H01-000
SUB: 12810-48H00-000		 TENSIONER, CAM CHAIN 1 Rp125.500
4 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 2 Rp3.000
5 12830-02A10-000 ADJUSTER ASSY, TENSIONER 1 Rp144.000
6 12837-48H00-000 GASKET, TENSIONER ADJUSTER 1 Rp23.000
7 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
