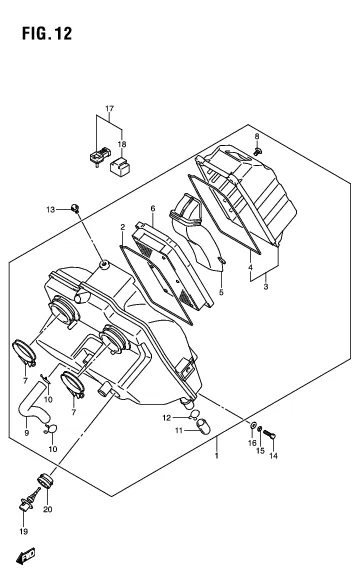

FIG. 12 AIR CLEANER

FIG. 12 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-48H01-000
SUB: 13700-48H00-000		 CLEANER ASSY, AIR 1 Rp861.500
2 13746-48H00-000 .GASKET 1 Rp34.500
3 13740-48H00-000 .CAP, AIR CLEANER 1 Rp200.500
4 13746-48H00-000 ..GASKET 1 Rp34.500
5 13891-48H00-000 .TUBE, INLET 1 Rp114.000
6 13780-48H01-000
SUB: 13780-48H00-000		 .FILTER ASSY 1 Rp152.000
7 13826-48H00-000 .CLAMP 2 Rp36.000
8 02142-0512A-000 .SCREW 2 Rp3.500
9 13853-48H00-000 .TUBE, BREATHER 1 Rp35.500
10 09401-15101-000 .CLIP 2 Rp3.000
11 13878-48H00-000 .PLUG, DRAIN 1 Rp19.000
12 09401-14101-000 .CLIP 1 Rp19.000
13 01550-0610B-000
SUB: 01550-0610A-000		 BOLT 1 Rp3.000
14 01500-0620A-000 BOLT 1 Rp4.500
15 DISCONTINUE
SUB: 08321-0106A-000		 WASHER 1 -
16 09160-06027-000
SUB: 09160-06077-000		 WASHER (6.5X20X1.2) 1 Rp6.500
17 15630-29G20-000 SENSOR, BOOST 2 Rp1.771.500
18 15625-29G10-000 .COVER 2 Rp75.500
19 13650-52G00-000 SENSOR, AIR TEMP 1 Rp762.500
20 13655-77E10-000
SUB: 13655-77E00-000		 GROMMET, AIR TEMP SENSOR 1 Rp30.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
