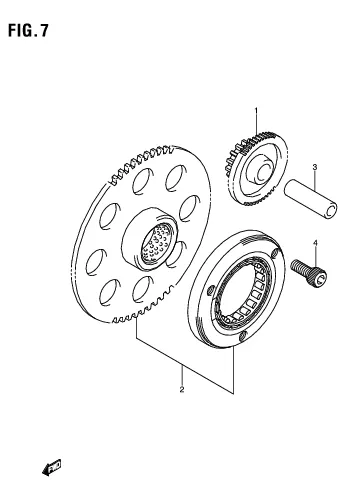

FIG. 7 STARTER CLUTCH

FIG. 7 STARTER CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 12611-48H00-000 GEAR, STARTER IDLE (NT:15/53) 1 Rp131.500
2 12600-48830-000 CLUTCH SET, STARTER (NT:65) 1 Rp820.000
3 09206-13007-000 PIN (7.4X13X40) 1 Rp35.500
4 07130-0816A-000 BOLT 3 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
