  5. FIG. 3 CRANKCASE

Inazuma

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEADFIG. 2 CYLINDERFIG. 3 CRANKCASEFIG. 4 CRANKCASE COVERFIG. 5 OIL PAN/OIL PUMPFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCHFIG. 8 CRANK BALANCERFIG. 9 CAM SHAFT/VALVEFIG. 10 CAM CHAINFIG. 11 THROTTLE BODYFIG. 12 AIR CLEANERFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 WATER PUMPFIG. 16 RADIATORFIG. 17 RADIATOR HOSEFIG. 18 2ND AIRFIG. 19 CLUTCHFIG. 20 TRANSMISSIONFIG. 21 GEAR SHIFTING

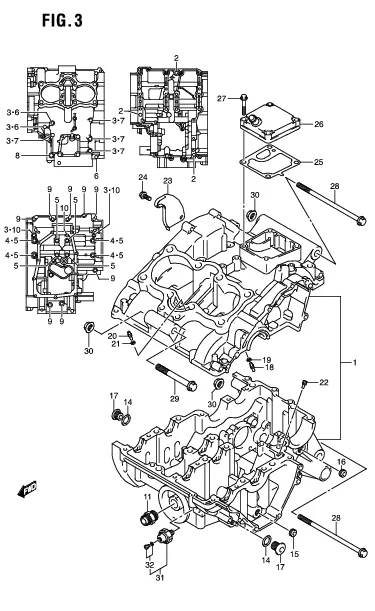

FIG. 3 CRANKCASE

FIG. 3 CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 11300-48871-000
SUB: 11300-48870-000		 CRANKCASE SET 1 Rp7.492.000
2 04211-11169-000 .PIN 3 Rp2.000
3 09168-06L04-000 .GASKET 8 Rp22.500
4 09168-08035-000 .GASKET (8.2X14X1) 4 Rp10.500
5 09103-08133-000 .BOLT (8X105) 8 Rp33.000
6 01547-0635A-000 .BOLT 3 Rp6.500
7 01547-0655A-000 .BOLT 4 Rp7.500
8 01550-0855A-000 .BOLT 1 Rp3.500
9 01547-0635A-000 .BOLT 8 Rp6.500
10 01547-0690A-000 .BOLT 3 Rp22.500
11 16591-48H00-000 .UNION, OIL FILTER STAND 1 Rp30.500
12 12228-17E00-0E0 .BEARING,CRANK THRUST (YELLOW) 1 Rp67.500 SEE ILLUSTRATION ON FIG.6
13-8 12228-17E00-0L0 .BEARING,CRANK THRUST 1 Rp70.000 (NO COLOR)
13-7 12228-17E00-0K0 .BEARING,CRANK THRUST (PURPLE) 1 Rp70.000
13-6 12228-17E00-0J0 .BEARING,CRANK THRUST (BROWN) 1 Rp69.000
13-5 12228-17E00-0H0 .BEARING,CRANK THRUST (PINK) 1 Rp70.000
13-3 12228-17E00-0F0 .BEARING,CRANK THRUST (WHITE) 1 Rp68.000
13-2 12228-17E00-0E0 .BEARING,CRANK THRUST (YELLOW) 1 Rp67.500
13-1 12228-17E00-0E0 .BEARING,CRANK THRUST (YELLOW) 1 Rp67.500 SEE ILLUSTRATION ON FIG.6
13-4 12228-17E00-0G0 .BEARING,CRANK THRUST (ORANGE) 1 Rp70.000
14 09168-14L01-000 GASKET 3 Rp9.500
15 09246-08008-000
SUB: 09246-06001-000		 PLUG (1/4PT, H:7.5) 1 Rp19.000
16 09246-08008-000
SUB: 09246-06001-000		 PLUG (1/4PT, H:7.5) 2 Rp19.000
17 09248-14013-000 PLUG (14X12) 3 Rp13.500
18 11390-48H00-000 JET, PISTON COOLING 2 Rp67.500
19 09280-04004-000 O RING (D:1.2,ID:4) 2 Rp3.500
20 11329-48H00-000 JET, OIL GALLERY CYLINDER 1 Rp34.500
21 09280-04004-000 O RING (D:1.2,ID:4) 1 Rp3.500
22 11313-48H00-000 JET, T/M COOLING 1 Rp31.500
23 11317-48H00-000 PLATE, OIL SEPARATOR 1 Rp29.500
24 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 2 Rp3.000
25 11318-48H00-000 GASKET, BREATHER COVER 1 Rp30.500
26 11330-48H00-000 COVER, BREATHER 1 Rp109.000
27 01547-0630A-000 BOLT 4 Rp6.500
28 09103-10115-000 BOLT (10X155) 2 Rp90.000
29 09103-10445-000 BOLT (10X85) 1 Rp33.000
30 09159-10L06-000 NUT 3 Rp14.500
31 37820-48H01-000
SUB: 37820-48H00-000		 SWITCH ASSY, OIL PRESSURE 1 Rp240.000
32 37822-48H00-000 .BOLT, OIL PRESS SWITCH 1 Rp19.000
