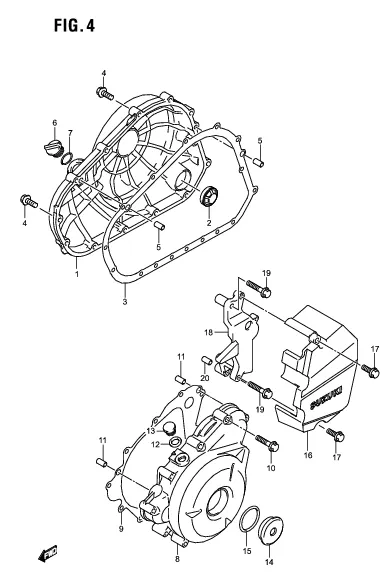

FIG. 4 CRANKCASE COVER

FIG. 4 CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11340-48H00-000 COVER, CLUTCH 1 Rp1.360.000
2 11971-48H00-000 .LENS, OIL LEVEL CHECK 1 Rp48.500
3 11482-48H00-000 GASKET, CLUTCH COVER 1 Rp293.500
4 01547-0630A-000 BOLT 13 Rp6.500
5 04211-09149-000 PIN 2 Rp3.000
6 11972-48H00-000 PLUG, OIL FILLER 1 Rp29.000
7 09280-17003-000 O RING (D:3.1,ID:16.8) 1 Rp2.000
8 11351-48H00-000 COVER, MAGNETO 1 Rp1.208.500
9 11483-48H00-000 GASKET, MAGNETO COVER 1 Rp135.500
10 01547-0635A-000 BOLT 10 Rp6.500
11 04211-09149-000 PIN 2 Rp3.000
12 11352-48H00-000 GASKET, TDC PLUG 1 Rp18.000
13 09247-12104-000 PLUG (12X9) 1 Rp17.500
14 09259-36016-20H PLUG (SILVER) 1 Rp100.000
15 09280-33004-000 O RING (D:3.1,ID:32.7) 1 Rp12.500
16 11360-48H00-000 COVER, ENGINE SPROCKET 1 Rp448.500
17 01547-0625A-000 BOLT 2 Rp6.500
18 11371-48H00-000 BRACKET, SPEED SENSOR 1 Rp366.000
19 01547-0640B-000
SUB: 01547-0640A-000		 BOLT 2 Rp7.000
20 04211-09149-000 PIN 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
