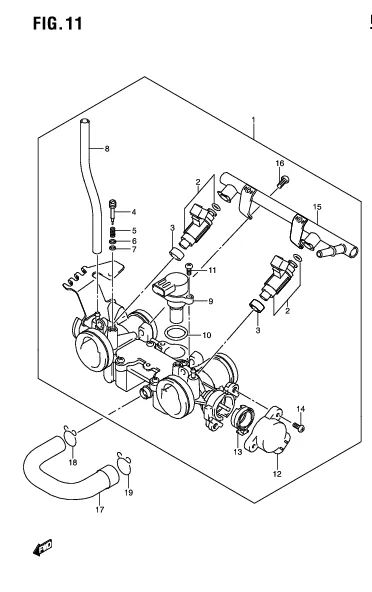

FIG. 11 THROTTLE BODY

FIG. 11 THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-48H10-000 BODY ASSY, THROTTLE 1 Rp7.655.500
2 15710-48H00-000 .INJECTOR ASSY 2 Rp1.896.500
3 15722-29G00-000 .SEAL 2 Rp83.000
4 13279-13G10-000 .ADJUSTER 2 Rp79.000
5 13268-48700-000 .SPRING 2 Rp26.000
6 13606-47A00-000 .WASHER 2 Rp17.500
7 13295-29900-000 .O RING 2 Rp8.000
8 13681-39F01-175
SUB: 13681-39F00-175		 .HOSE 2 Rp73.000
9 18117-14J01-000 .MOTOR ASSY 1 Rp2.949.000
10 13679-37H00-000 .O RING 1 Rp43.500
11 13602-05A40-000 .SCREW 2 Rp25.500
12 13580-48H01-000
SUB: 13580-48H00-000		 .SENSOR ASSY 1 Rp856.000
13 13311-48H00-000 .O RING 1 Rp41.000
14 13605-02F00-000 .SCREW 2 Rp30.000
15 15730-48H00-000 .DELIVERLY PIPE 1 Rp1.915.000
16 13602-06148-000 .SCREW 1 Rp24.000
17 13697-48H00-000 HOSE, ISC VALVE 1 Rp56.500
18 09401-15101-000 CLIP 1 Rp3.000
19 09401-18101-000 CLIP 1 Rp21.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
