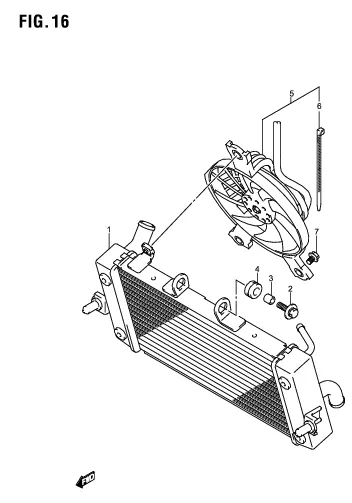

FIG. 16 RADIATOR

FIG. 16 RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1 17710-48H50-000
SUB: 17710-48H00-000		 RADIATOR ASSY, WATER 1 Rp2.662.500
2 09118-06097-000 BOLT (6X25) 3 Rp21.000
3 09180-06364-000 SPACER (6.5X10X10) 3 Rp8.000
4 09320-10501-000 CUSHION 3 Rp40.500
5 17800-48H00-000 FAN ASSY, RADIATOR 1 Rp1.660.500
6 36990-48H20-000 .CLAMP, FAN MOTOR LEAD 1 Rp27.000
7 01550-0612A-000 BOLT 3 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
