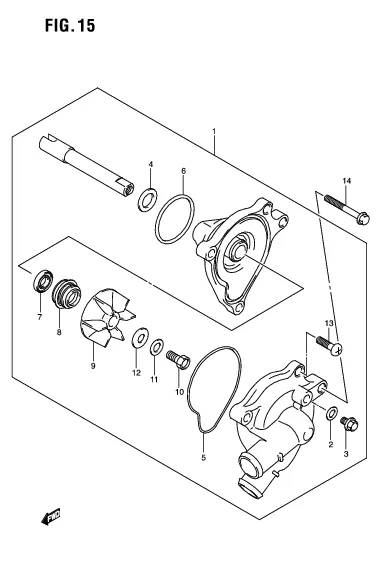

FIG. 15 WATER PUMP

FIG. 15 WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 17400-48H01-000
SUB: 17400-48H00-000		 PUMP ASSY, WATER 1 Rp1.995.500
2 17413-28C10-000 .GASKET 1 Rp17.000
3 17415-43D00-000 .BOLT, BLEEDER 1 Rp36.000
4 17432-07G00-000 .WASHER 1 Rp20.000
5 17435-12C00-000 .O RING, WATER PUMP CASE 1 Rp45.500
6 17435-33400-000 .O RING 1 Rp97.000
7 17461-01H00-000 .OIL SEAL 1 Rp126.500
8 17470-02F11-000
SUB: 17470-02F10-000		 .SEAL, WATER PUMP SHAFT 1 Rp198.500
9 17491-12C00-000 .IMPELLER, WATER PUMP 1 Rp124.500
10 09100-06099-000 .BOLT (6X13) 1 Rp14.500
11 DISCONTINUE
SUB: 09164-06006-000		 .WASHER 1 -
12 09168-06025-000 .GASKET (6X15X2.2) 1 Rp21.000
13 02112-0616A-000 .SCREW 2 Rp3.500
14 01547-0635A-000 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
