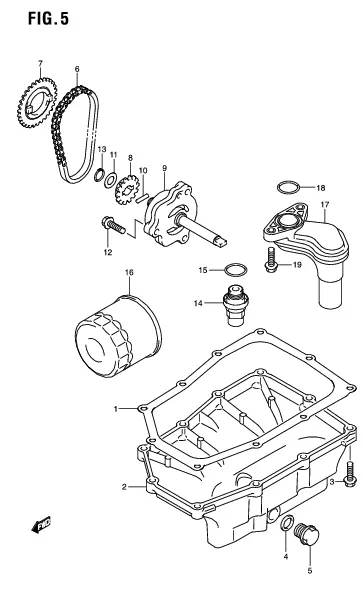

FIG. 5 OIL PAN/OIL PUMP

FIG. 5 OIL PAN/OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 11489-48H00-000 GASKET, OIL PAN 1 Rp173.500
2 11511-48H00-000 PAN, OIL 1 Rp701.500
3 01547-0625A-000 BOLT 10 Rp6.500
4 09168-14L01-000
SUB: 09168-14016-000		 GASKET (14X18X1.5) 1 Rp9.500
5 09247-14043-000
SUB: 09247-14050-000		 PLUG (14X12) OIL DRAIN 1 Rp13.000
6 16310-48H00-000 CHAIN ASSY, OIL PUMP DRIVE 1 Rp67.000
7 16321-48H00-000 SPROCKET, OIL PUMP DRIVE (NT:29) 1 Rp168.000
8 16331-48H00-000 SPROCKET, OIL PUMP DRIVEN (NT:15) 1 Rp97.500
9 16400-48H00-000 PUMP ASSY, OIL 1 Rp410.500
10 16421-48H00-000 PIN, OIL PUMP 1 Rp16.500
11 16422-48H00-000 WASHER, PUMP DRIVEN GEAR 1 Rp22.500
12 01547-0625A-000 BOLT 3 Rp6.500
13 DISCONTINUE
SUB: 08331-31109-000		 CIRCLIP 1 -
14 16440-48H00-000 VALVE ASSY, OIL RELIEF 1 Rp417.000
15 09168-16010-000 GASKET (16X22X2) 1 Rp16.500
16 16510-07J00-000
SUB: 16510-48H10-000		 FILTER ASSY, ENGINE OIL 1 Rp129.500
17 16520-48H00-000 STRAINER, ENGINE OIL 1 Rp130.000
18 09280-23L01-000 O RING (D:2.4,ID22.8) 1 Rp20.500
19 DISCONTINUE
SUB: 01550-0625A-000		 BOLT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
