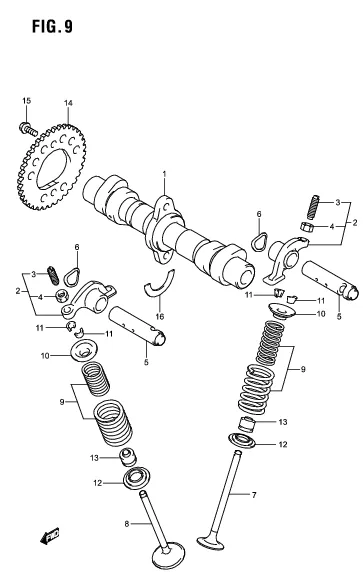

FIG. 9 CAM SHAFT/VALVE

FIG. 9 CAM SHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-48H00-000 CAMSHAFT 1 Rp1.323.000
2 12840-20H10-000 ARM, VALVE ROCKER 4 Rp159.000
3 12842-49220-000 .SCREW, TAPPET ADJUSTING 4 Rp41.500
4 12843-39J30-000
SUB: 12843-27A10-000		 .NUT, TAPPET ADJUSTING 4 Rp17.500
5 12861-48H00-000 SHAFT, VALVE ROCKER ARM 4 Rp58.500
6 09164-12018-000 WASHER 4 Rp9.500
7 12911-20H10-000 VALVE, INTAKE 2 Rp103.500
8 12912-20H10-000 VALVE, EXHAUST 2 Rp166.000
9 12920-48H00-000 SPRING SET, VALVE 4 Rp170.500
10 12931-27A30-000 RETAINER, VALVE SPRING 4 Rp31.000
11 12932-36H00-000
SUB: 12932-27A10-000		 COTTER, VALVE 8 Rp10.500
12 12933-81410-000 SEAT, VALVE SPRING 4 Rp29.500
13 09289-05008-000
SUB: 09289-05016-000		 OIL SEAL (5X10X8) 4 Rp6.500
14 12741-48H00-000 SPROCKET, CAMSHAFT (NT:38) 1 Rp92.500
15 DISCONTINUE
SUB: 09111-06027-000		 BOLT (6X12.5) 2 -
16 09390-22002-000 C RING 1 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
