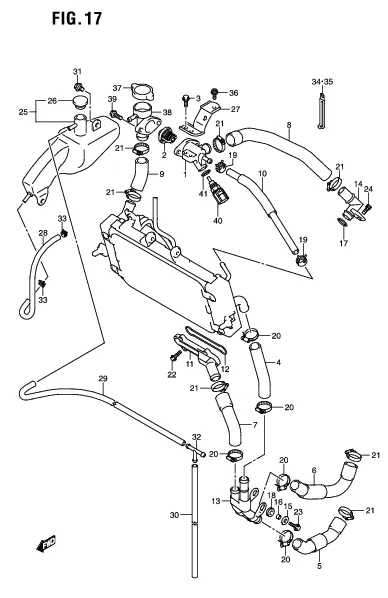

FIG. 17 RADIATOR HOSE

FIG. 17 RADIATOR HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 17662-48H00-000 CONNECTOR, THERMOSTAT INLET 1 Rp223.500
2 17670-48H01-000
SUB: 17670-48H00-000		 THERMOSTAT, WATER 1 Rp210.500
3 01550-0616A-000 BOLT 2 Rp3.500
4 17851-48H00-000 HOSE, RADIATOR OUTLET 1 Rp50.000
5 17852-48H00-000 HOSE, WATER PUMP INLET 1 Rp68.500
6 17853-48H00-000 HOSE, WATER PUMP OUTLET 1 Rp73.000
7 17854-48H00-000 HOSE, CYLINDER CONNECTOR 1 Rp49.000
8 17855-48H00-000 HOSE, THERMOSTAT CONNECTOR 1 Rp82.000
9 17856-48H00-000 HOSE, RADIATOR INLET 1 Rp43.500
10 17857-48H00-000 HOSE, WATER BYPASS 1 Rp57.000
11 17861-48H00-000 CONNECTOR, CYL WATER INLET 1 Rp113.500
12 17863-48H00-000 O RING, CYL INLET CONNECTOR 1 Rp28.500
13 17870-48H00-000 PIPE, WATER PUMP 1 Rp313.000
14 17880-48H00-000 PIPE, CYLINDER HEAD OUTLET 1 Rp118.000
15 09160-06028-000 WASHER (6.5X18X1) 2 Rp3.500
16 09180-06365-000 SPACER (6.5X9X5) 2 Rp7.500
17 09280-18011-000 O RING (D:3.2,ID:17.8) 1 Rp11.500
18 09320-08084-000 CUSHION 2 Rp8.000
19 09401-12L02-000 CLIP 2 Rp24.500
20 09402-27L01-000
SUB: 09402-25L01-000		 CLAMP 5 Rp47.000
21 09402-32L01-000
SUB: 09402-28L01-000		 CLAMP 7 Rp50.500
22 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 4 Rp6.500
23 01550-0620A-000 BOLT 2 Rp3.500
24 07130-0612A-000 BOLT 1 Rp3.500
25 17910-48H00-000 TANK ASSY, RESERVOIR 1 Rp204.000
26 17932-12C00-000 .CAP, RESERVOIR TANK 1 Rp33.500
27 17920-48H00-000 BRACKET, RESERVOIR TANK 1 Rp76.000
28 17981-19F00-000 HOSE, RESERVOIR TANK INLET 1 Rp94.500
29 DISCONTINUE
SUB: 17900-44810-000		 HOSE, RESERVOIR TANK OVER FLOW 1 -
30 17985-48H00-000 HOSE, FUEL TANK WATER DRAIN 1 Rp45.500
31 DISCONTINUE
SUB: 09111-06085-000		 BOLT (6X12) 2 -
32 09367-08005-000 3 WAY 1 Rp30.000
33 09401-08L01-000 CLIP 2 Rp15.000
34 DISCONTINUE
SUB: 09404-06206-000		 CLAMP (L:60) 1 -
35 DISCONTINUE
SUB: 09404-06207-000		 CLAMP (L:80) 1 -
36 07120-0612A-000 BOLT 2 Rp16.500
37 17730-48H00-000 CAP, RADIATOR 1.1 1 Rp141.000
38 17791-48H01-000
SUB: 17791-48H00-000		 CONDUCTION, RADIATOR 1 Rp182.000
39 01550-0620A-000 BOLT 2 Rp3.500
40 13650-49X00-000 SENSOR, WATER TEMP 1 Rp133.500
41 13651-48H00-000 GASKET, TEMP SENSOR 1 Rp24.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
