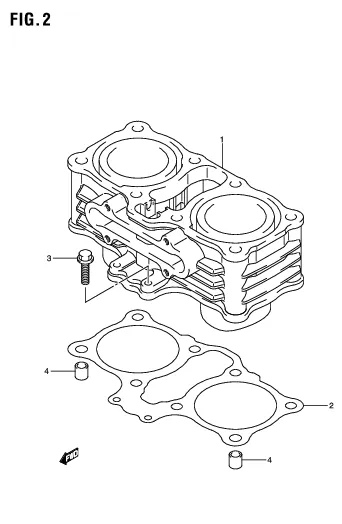

FIG. 2 CYLINDER

FIG. 2 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11210-48H60-0F0
SUB: 11210-48H01-0F0		 CYLINDER (YELLOW) 1 Rp2.616.500
2 11241-48H00-000 GASKET, CYLINDER 1 Rp165.000
3 DISCONTINUE
SUB: 01550-0625A-000		 BOLT 2 -
4 04211-11129-000 PIN 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
