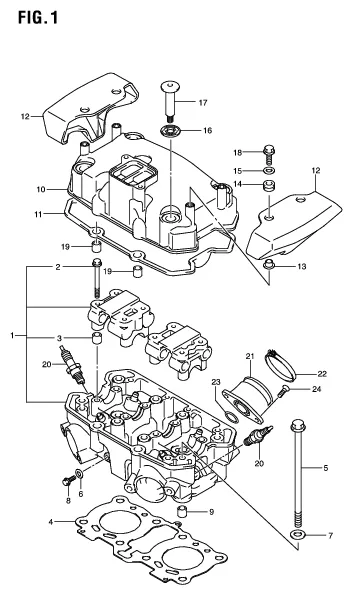

FIG. 1 CYLINDER HEAD

FIG. 1 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11100-48H00-000 HEAD ASSY, CYLINDER 1 Rp5.424.500
2 09103-06220-000 .BOLT (6X60) 8 Rp18.000
3 09206-08011-000 .PIN (6.2X8X11) 4 Rp8.000
4 11141-48H00-000 GASKET, CYLINDER HEAD 1 Rp204.000
5 09103-08449-000 BOLT (8X165) 8 Rp47.500
6 09168-06004-000 GASKET (6.2X11X1.2) 2 Rp2.500
7 09168-08032-000
SUB: 09168-08036-000		 GASKET (8.5X17X2.3) 8 Rp10.500
8 01550-0612A-000 BOLT 2 Rp3.500
9 04211-11129-000 PIN 2 Rp2.000
10 11171-48H00-000 COVER, CYLINDER HEAD 1 Rp821.500
11 11173-48H00-000 GASKET, CYLINDER HEAD COVER 1 Rp127.500
12 11174-48H00-000 CAP, CYLINDER HEAD COVER 2 Rp231.500
13 11177-48H00-000 SPACER, HEAD COVER CAP 4 Rp17.500
14 11181-48H00-000 CUSHION, HEAD COVER CAP 4 Rp15.500
15 09160-06027-000
SUB: 09160-06077-000		 WASHER (6.5X20X1.2) 4 Rp6.500
16 11191-27E00-000
SUB: 11191-27E60-000		 WASHER, CYLINDER HEAD COVER 4 Rp30.500
17 09106-07022-000 BOLT (7X57) 4 Rp54.500
18 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 4 Rp6.500
19 04211-11129-000 PIN 2 Rp2.000
20-1 09482-00516-000 SPARK PLUG (NGK, CR7E) 2 Rp157.500
20-2 09482-00515-000 SPARK PLUG (DENSO, U22ESR-N) 2 Rp61.000
21 DISCONTINUE
SUB: 13110-48H00-000		 PIPE, INTAKE 2 -
22 13170-48H00-000 CLAMP, INTAKE PIPE 2 Rp24.000
23 09280-30L01-000 O RING (D:2.3,ID:29.7) 2 Rp24.500
24 02122-0616A-000 SCREW 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
