  5. FIG. 20 TRANSMISSION

Inazuma

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEADFIG. 2 CYLINDERFIG. 3 CRANKCASEFIG. 4 CRANKCASE COVERFIG. 5 OIL PAN/OIL PUMPFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCHFIG. 8 CRANK BALANCERFIG. 9 CAM SHAFT/VALVEFIG. 10 CAM CHAINFIG. 11 THROTTLE BODYFIG. 12 AIR CLEANERFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 WATER PUMPFIG. 16 RADIATORFIG. 17 RADIATOR HOSEFIG. 18 2ND AIRFIG. 19 CLUTCHFIG. 20 TRANSMISSIONFIG. 21 GEAR SHIFTING

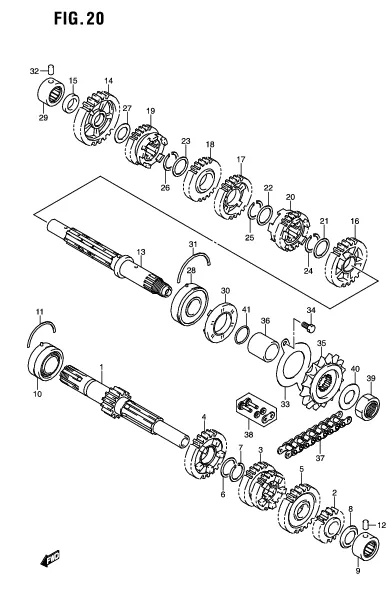

FIG. 20 TRANSMISSION

FIG. 20 TRANSMISSION
No No. Part Description Qty Price Per Pcs Remarks
1 24120-48H00-000 SHAFT, COUNTER (NT:12) 1 Rp1.709.500
2 24221-48H00-000 GEAR, 2ND DRIVE (NT:17) 1 Rp84.000
3 24231-48H00-000 GEAR, 3RD & 4TH DRIVE (NT:22/23) 1 Rp188.500
4 24251-48H00-000 GEAR, 5TH DRIVE (NT:22) 1 Rp109.500
5 24260-48H00-000 GEAR, 6TH DRIVE (NT:26) 1 Rp139.500
6 09181-22017-000 WASHER (22X28X1) 1 Rp16.000
7 09380-22016-000 CIRCLIP 1 Rp12.500
8 24271-48H00-000 SEAL, SHAFT LH BEARING 1 Rp73.000
9 09263-17050-000 BEARING (17X30X16) LH 1 Rp152.000
10 09267-22001-000 BEARING (22X47X20.6) RH 1 Rp424.000
11 09390-47008-000 C RING 1 Rp15.000
12 04221-06129-000 PIN 1 Rp12.500
13 24130-48H00-000 SHAFT, DRIVE 1 Rp314.000
14 24310-48H00-000 GEAR, 1ST DRIVEN (NT:29) 1 Rp166.500
15 24313-48H00-000 SPACER, 1ST DRIVEN GEAR 1 Rp21.000
16 24320-48H00-000 GEAR, 2ND DRIVEN (NT:26) 1 Rp160.000
17 24331-48H00-000 GEAR, 3RD DRIVEN (NT:26) 1 Rp127.000
18 24341-48H00-000 GEAR, 4TH DRIVEN (NT:24) 1 Rp122.500
19 24351-48H00-000 GEAR, 5TH DRIVEN (NT:20) 1 Rp147.000
20 24361-48H00-000 GEAR, 6TH DRIVEN (NT:21) 1 Rp139.500
21 09181-22017-000 WASHER (22X28X1) 1 Rp16.000
22 09181-22017-000 WASHER (22X28X1) 1 Rp16.000
23 09181-22017-000 WASHER (22X28X1) 1 Rp16.000
24 09380-22016-000 CIRCLIP 1 Rp12.500
25 09380-22016-000 CIRCLIP 1 Rp12.500
26 09380-22016-000 CIRCLIP 1 Rp12.500
27 08211-17262-000 WASHER 1 Rp17.500
28 09262-22039-000 BEARING (22X56X16) LH 1 Rp277.000
29 09263-17050-000 BEARING (17X30X16) RH 1 Rp152.000
30 09283-30L01-000 SEAL 1 Rp52.500
31 09390-56002-000 C RING 1 Rp14.500
32 04221-06129-000 PIN 1 Rp12.500
33 24741-48H00-000 RETAINER, DRIVE SHAFT OIL SEAL 1 Rp26.000
34 DISCONTINUE
SUB: 01500-0612A-000		 BOLT 2 -
35 27510-48H20-000
SUB: 27510-48H10-000		 SPROCKET, ENGINE (NT:14) 1 Rp127.500
36 27531-48H00-000 SPACER, ENGINE SPROCKET 1 Rp62.000
37 27600-48H11-116
SUB: 27600-48H10-116		 CHAIN ASSY, DRIVE (116L) 1 Rp2.807.500
38 27620-48H10-000 JOINT SET, CHAIN OPT 1 -
39 09140-18008-000 NUT 1 Rp36.000
40 27513-48H00-000
SUB: 09181-22016-000		 WASHER (22X36X1) 1 Rp15.500
41 09280-21008-000 O RING (D:2.5,ID:21) 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
