Inazuma

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEADFIG. 2 CYLINDERFIG. 3 CRANKCASEFIG. 4 CRANKCASE COVERFIG. 5 OIL PAN/OIL PUMPFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCHFIG. 8 CRANK BALANCERFIG. 9 CAM SHAFT/VALVEFIG. 10 CAM CHAINFIG. 11 THROTTLE BODYFIG. 12 AIR CLEANERFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 WATER PUMPFIG. 16 RADIATORFIG. 17 RADIATOR HOSEFIG. 18 2ND AIRFIG. 19 CLUTCHFIG. 20 TRANSMISSIONFIG. 21 GEAR SHIFTING

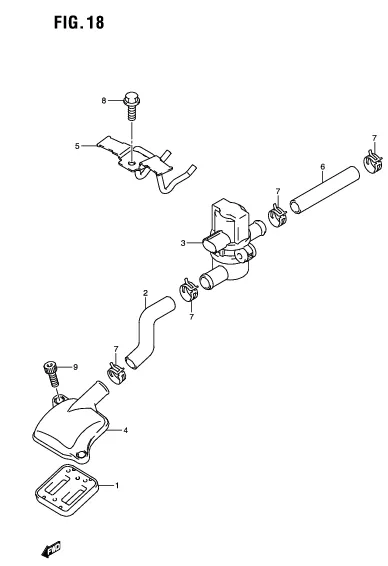

FIG. 18 2ND AIR

FIG. 18 2ND AIR
No No. Part Description Qty Price Per Pcs Remarks
1 18450-48H00-000 VALVE ASSY, 2ND AIR REED 1 Rp607.500
2 18461-48H00-000 HOSE, 2ND AIR VALVE 1 Rp46.000
3 18510-48H00-000 VALVE ASSY, AIR CUT 1 Rp1.162.000
4 18531-48H00-000 COVER, 2ND AIR REED VALVE 1 Rp93.000
5 18610-48H00-000 BRACKET, 2ND AIR VALVE 1 Rp35.500
6 18711-48H00-000 HOSE, 2ND AIR CLEANER 1 Rp29.500
7 09401-17L02-000 CLIP 4 Rp17.500
8 01550-0612A-000 BOLT 1 Rp3.500
9 07130-0616A-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
