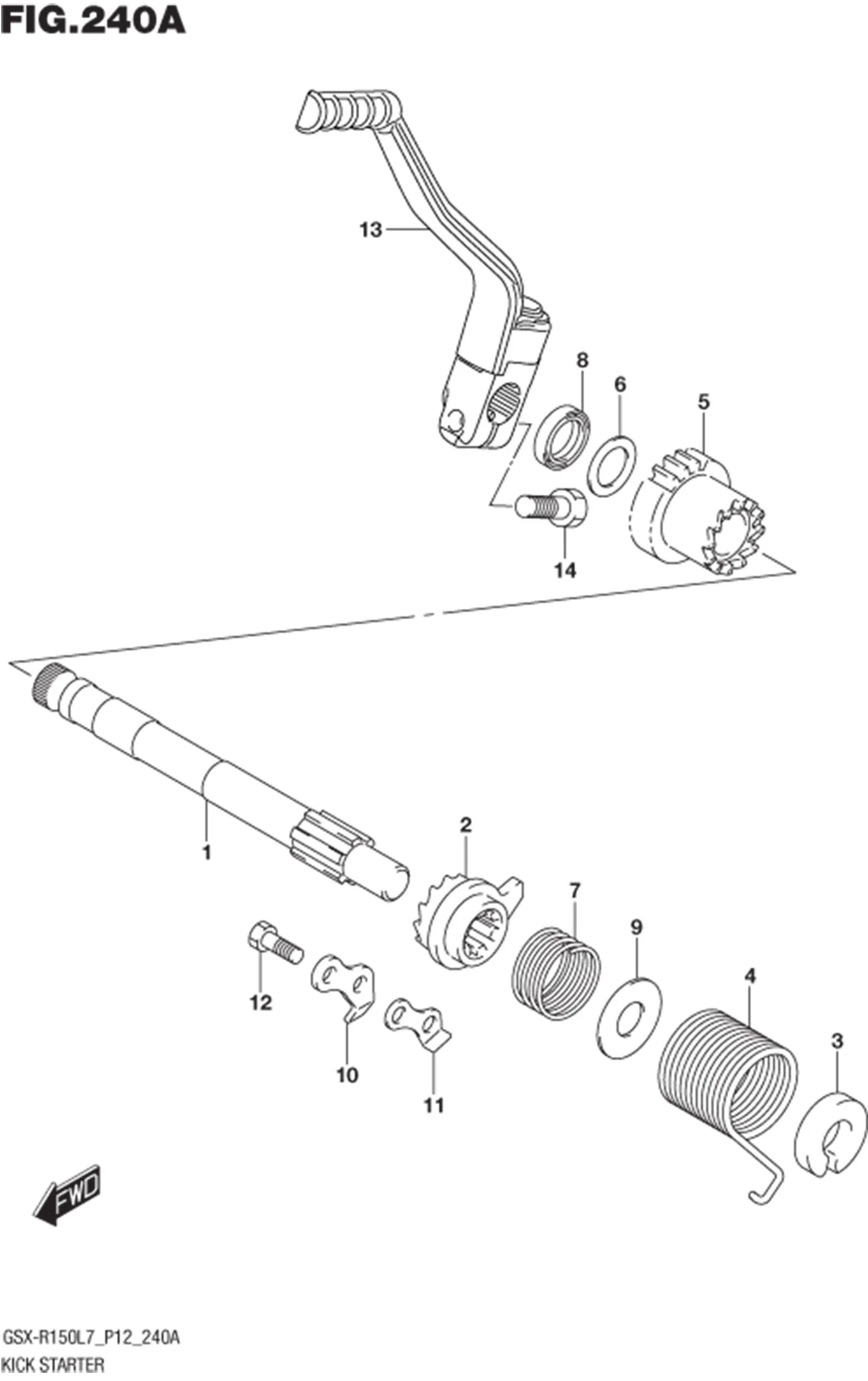

FIG.240A (1-D-2) KICK STARTER

FIG.240A (1-D-2) KICK STARTER
No No. Part Description Qty Price Per Pcs Remarks
26211-12K00-000 SHAFT, KICK STARTER 1 Rp67.500
26231-09430-000
SUB: 26231B09430N000		 STARTER, KICK 1 Rp61.500
26241-12K00-000 GEAR, DRIVE (NT:21) 1 Rp160.000
08211-16241-000
SUB: 08211B16241N000		 WASHER 1 Rp4.500
09283-16008-000
SUB: 09283B16008N000		 OIL SEAL (16X24X5) 1 Rp9.500
26300-23K10-000
SUB: 26300-23K00-000		 LEVER ASSY, KICK STARTER 1 Rp116.000
01500-0825B-000
SUB: 01500B0825BN000		 BOLT 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
