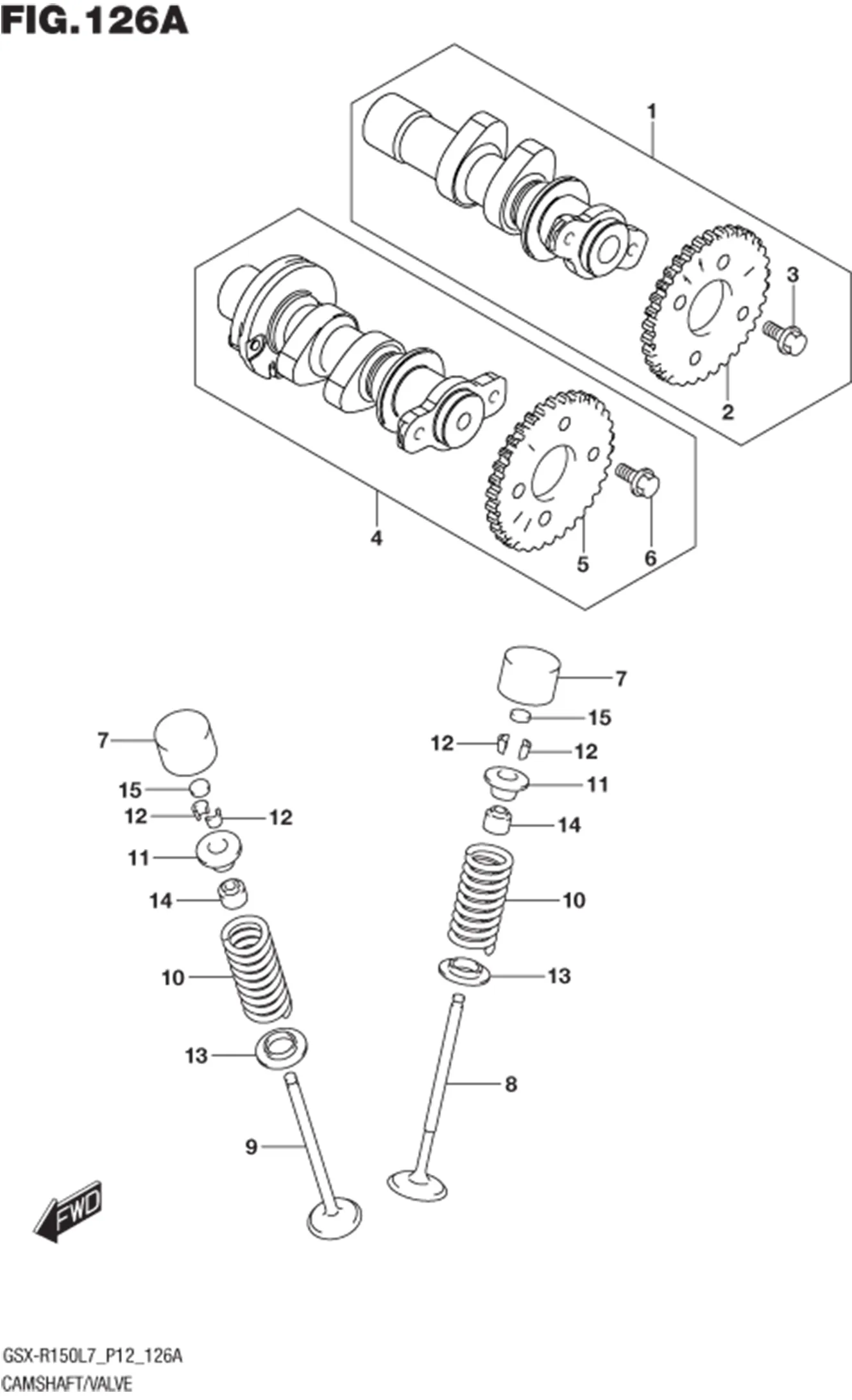

FIG.126A (1-B-9) CAMSHAFT/VALVE

FIG.126A (1-B-9) CAMSHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
12741-12K00-000 SPROCKET, CAMSHAFT (NT:34) 1 Rp32.500
DISCONTINUE
SUB: 31343-75F10-000		 1 -
DISCONTINUE
SUB: 31341-67D10-000		 1 -
DISCONTINUE
SUB: 31311-67D10-000		 1 -
DISCONTINUE
SUB: 33925-50J10-000		 1 -
12892-05C00-120 SHIM, TAPPET (T:1.20) 4 Rp57.500
09289-04002-000
SUB: 09289B04002N000		 OIL SEAL (4.5X10X8) 4 Rp10.500
12933-12K00-000 SEAT, VALVE SPRING 4 Rp5.500
12932-32C00-000 COTTER, VALVE 8 Rp12.500
12931-25G20-000 RETAINER, VALVE SPRING 4 Rp9.500
12921-12K00-000 SPRING, VALVE 4 Rp27.500
12912-12K00-000 VALVE, EXHAUST 2 Rp39.500
12911-12K00-000 VALVE, INTAKE 2 Rp37.500
12891-25G10-000
SUB: 12891B25G10N000		 TAPPET 4 Rp38.500
09103-05025-000 BOLT 2 Rp4.500
12741-12K00-000 SPROCKET, CAMSHAFT (NT:34) 1 Rp32.500
12702-12K10-000 CAM SHAFT, EXHAUST 1 Rp481.500
09103-05025-000 BOLT 2 Rp4.500
12710-12K11-000
SUB: 12710-12K10-000		 CAM SHAFT, INTAKE 1 Rp468.500
13 31320-86030-000 .CLUTCH, OVER RUNNING 1 Rp1.461.000
16 09409M07L01-000
SUB: 09409M07332-000		 CLIP 4 Rp5.000
16 31344-86030-000 .GEAR, PLANETARY 3 Rp329.000
34 33926-60G10-000 RESISTOR ASSY, CO ADJUSTMENT 1 Rp703.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
