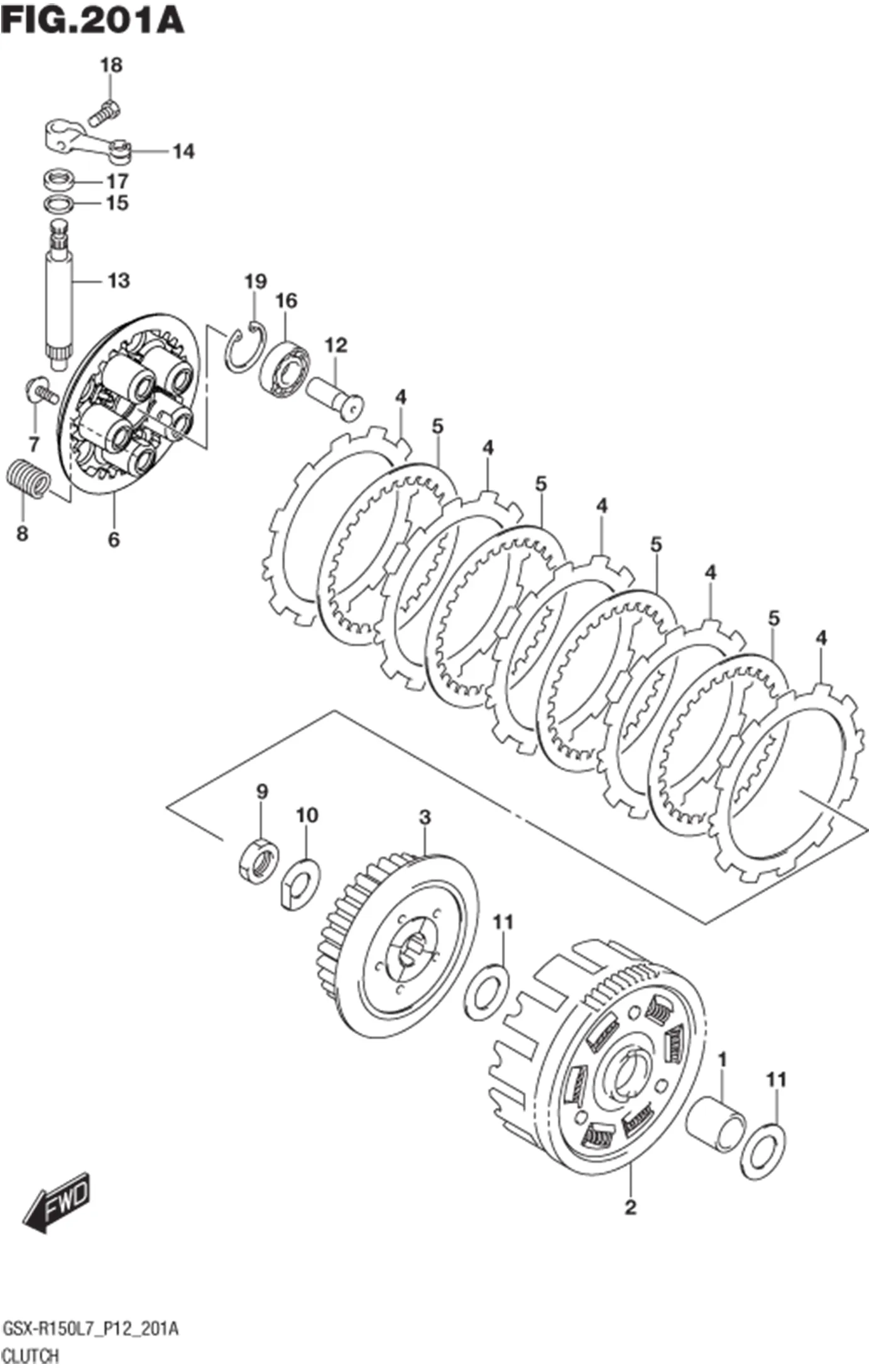

FIG.201A (1-C-9) CLUTCH

FIG.201A (1-C-9) CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
23165-28G60-000 RACK, CLUTCH RELEASE 1 Rp25.500
37670-65D01-000
SUB: 37670-65D00-000		 1 Rp109.000
37670-65D01-000
SUB: 37670-65D00-000		 4 Rp109.000
37740-61J10-000
SUB: 37740-75H20-000		 1 Rp59.000
DISCONTINUE
SUB: 36737-80E00-000		 1 -
08331-41309-000
SUB: 08331B41309N000		 CIRCLIP 1 Rp8.500
01500-0616A-000
SUB: 01500B0616BN000		 BOLT 1 Rp6.500
09285-10008-000
SUB: 09285B10008N000		 SEAL (10X17X5) 1 Rp9.500
08110-62000-000 BEARING 1 Rp17.000
23271-47E20-000 ARM, RELEASE 1 Rp47.000
23261-12K01-000
SUB: 23261-12K00-000		 PINION, RELEASE 1 Rp62.500
21251-12K02-000
SUB: 21251-12K01-000		 SPACER, PRIMARY DRIVEN GEAR 1 Rp28.500
08211-20352-000
SUB: 08211B20352N000		 WASHER 2 Rp10.500
09169-16009-000
SUB: 09169B16009N000		 WASHER 1 Rp5.500
21414-12K00-000 NUT 1 Rp11.000
09440-15042-000
SUB: 09440B15042N000		 SPRING 5 Rp15.000
09116-05147-000
SUB: 09116B05147N000		 BOLT (5X16) 5 Rp8.000
21462-23K00-000 DISC, CLUTCH PRESSURE 1 Rp89.000
21451-28040-000 PLATE, DRIVEN (T:1.6) 4 Rp30.500
21441-25G10-000 PLATE, DRIVE (T:3.0) 5 Rp34.000
21411-05241-000 HUB, CLUTCH SLEEVE 1 Rp60.000
21200-12K00-0A0 GEAR ASSY, PRIMARY DRIVEN 1 Rp439.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
