  3. GSXS-150
  4. Engine
  5. FIG.127A (1-B-10) CAM CHAIN

GSXS-150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.102A (1-B-2) CYLINDER HEAD COVERFIG.103A (1-B-3) CYLINDER HEADFIG.107A (1-B-4) CYLINDERFIG.108A (1-B-5) CRANKCASEFIG.112A (1-B-6) CRANKCASE COVERFIG.120A (1-B-7) CRANKSHAFTFIG.122A (1-B-8) STARTER CLUTCHFIG.124A (1-B-10) CRANK BALANCERFIG.126A (1-B-9) CAMSHAFT/VALVEFIG.127A (1-B-10) CAM CHAINFIG.140A (1-B-11) THROTTLE BODYFIG.155A (1-B-12) AIR CLEANERFIG.163A (1-B-13) MUFFLERFIG.170A (1-B-14) OIL PUMPFIG.172A (1-B-15) FUEL PUMPFIG.180A (1-C-2) WATER PUMPFIG.185A (1-C-3) RADIATORFIG.187A (1-C-4) RADIATOR HOSEFIG.201A (1-C-9) CLUTCHFIG.210A (1-C-5) TRANSMISSION (1)FIG.212A (1-C-13) GEAR SHIFTINGFIG.240A (1-D-2) KICK STARTER

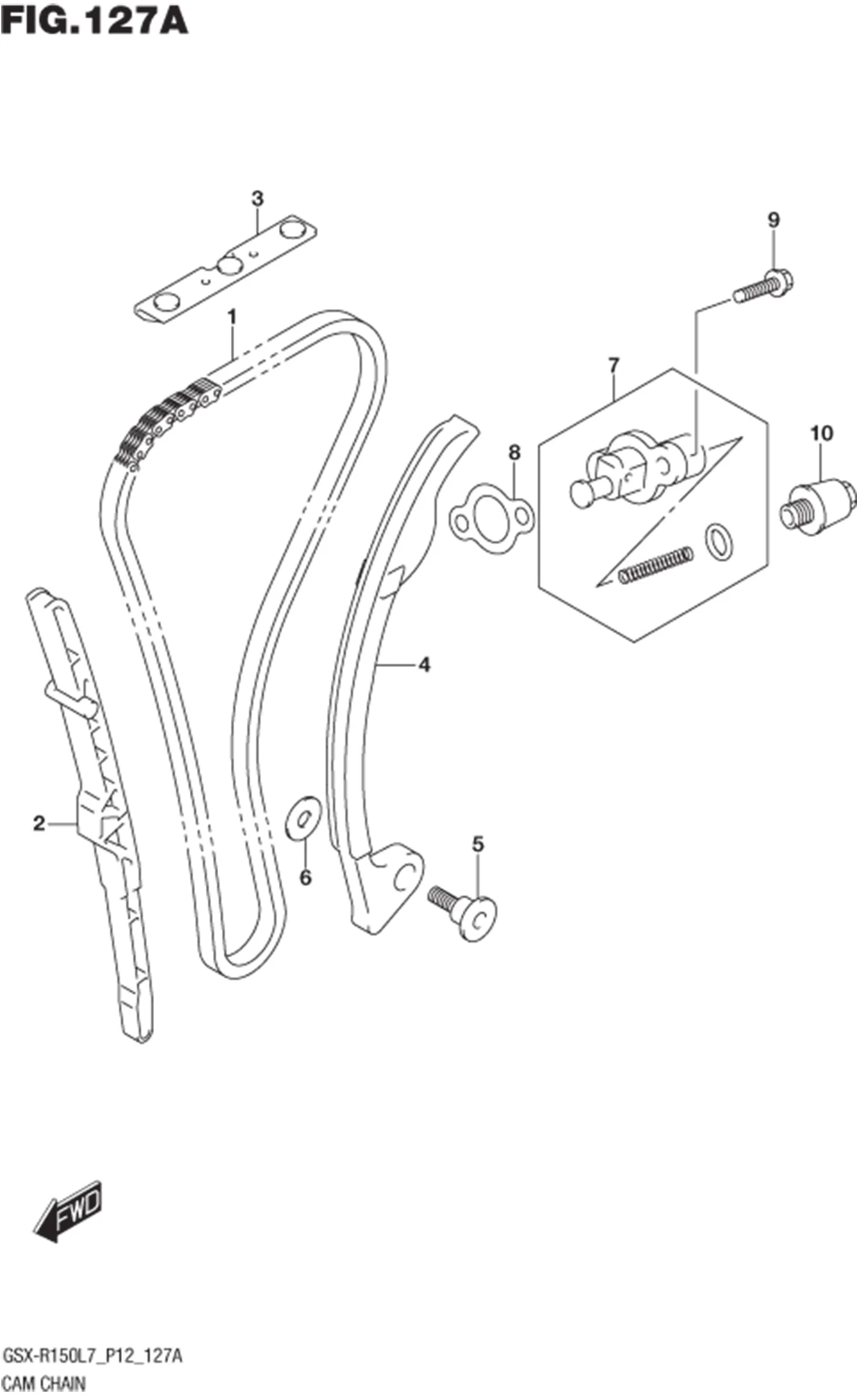

FIG.127A (1-B-10) CAM CHAIN

FIG.127A (1-B-10) CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
12760-12K00-000 CHAIN, CAM SHAFT DRIVE 1 Rp101.000
12771-12K00-000 GUIDE, CAM CHAIN NO.1 1 Rp14.500
12782-12K01-000 GUIDE, CAM CHAIN NO.2 1 Rp18.500
12811-12K00-000 TENSIONER, CAM CHAIN 1 Rp53.500
12812-35C00-000
SUB: 12812B35C00N000		 BOLT, CAM CHAIN TENSIONER 1 Rp4.000
08211-06181-000
SUB: 08211B06181N000		 WASHER 1 Rp9.500
12830-12K00-000 ADJUSTER SET, TENSIONER 1 Rp118.000
12837-12K00-000 GASKET, TENSIONER ADJUSTER 1 Rp4.500
12836-12K01-000
SUB: 12836-12K00-000		 BOLT, ADJUSTER SPRING 1 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
