GSXS-150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.102A (1-B-2) CYLINDER HEAD COVERFIG.103A (1-B-3) CYLINDER HEADFIG.107A (1-B-4) CYLINDERFIG.108A (1-B-5) CRANKCASEFIG.112A (1-B-6) CRANKCASE COVERFIG.120A (1-B-7) CRANKSHAFTFIG.122A (1-B-8) STARTER CLUTCHFIG.124A (1-B-10) CRANK BALANCERFIG.126A (1-B-9) CAMSHAFT/VALVEFIG.127A (1-B-10) CAM CHAINFIG.140A (1-B-11) THROTTLE BODYFIG.155A (1-B-12) AIR CLEANERFIG.163A (1-B-13) MUFFLERFIG.170A (1-B-14) OIL PUMPFIG.172A (1-B-15) FUEL PUMPFIG.180A (1-C-2) WATER PUMPFIG.185A (1-C-3) RADIATORFIG.187A (1-C-4) RADIATOR HOSEFIG.201A (1-C-9) CLUTCHFIG.210A (1-C-5) TRANSMISSION (1)FIG.212A (1-C-13) GEAR SHIFTINGFIG.240A (1-D-2) KICK STARTER

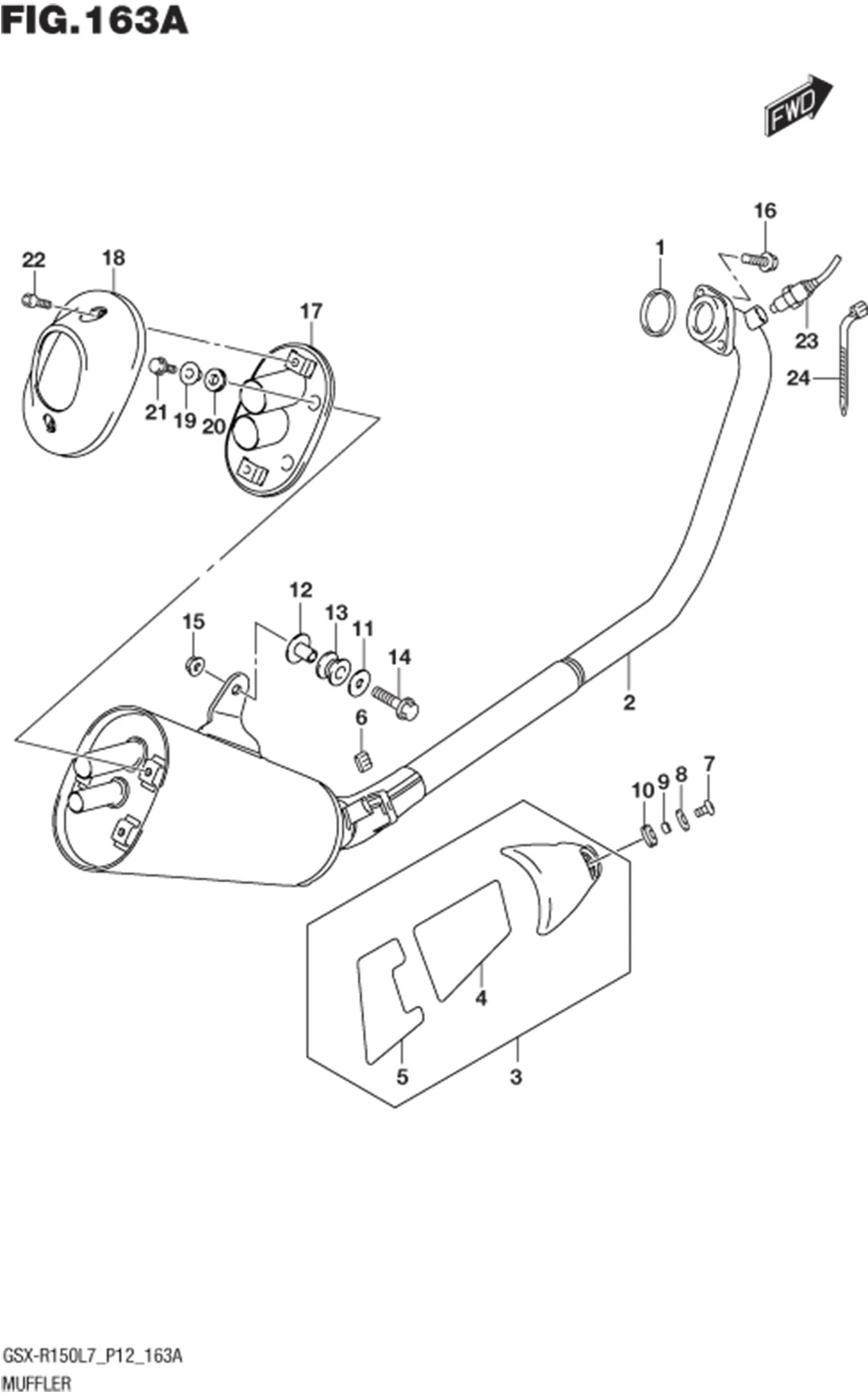

FIG.163A (1-B-13) MUFFLER

FIG.163A (1-B-13) MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
09160-08134-000
SUB: 09160B08134N000		 WASHER (8.5X26X1.6) 1 Rp7.500
36990-25G00-000 CLAMP 1 Rp13.000
18213-12K01-000
SUB: 18213-12K00-000		 SENSOR, OXYGEN 1 Rp326.000
01550B0612BN000 BOLT 3 Rp2.500
09320-08082-000
SUB: 09320B08082N000		 CUSHION 3 Rp10.500
09169-06091-000
SUB: 09169B06057N000		 WASHER 3 Rp4.500
14790-23K01-000
SUB: 14790-23K00-000		 COVER, MUFFLER REAR 1 Rp79.500
14760-23K00-000 STAY, MUFFLER REAR COVER 1 Rp140.000
14181-47E20-000
SUB: 14181B47E20N000		 GASKET, EXHAUST PIPE 1 Rp9.000
09320-08082-000
SUB: 09320B08082N000		 CUSHION 1 Rp10.500
09180-06343-000
SUB: 09180B06343N000		 SPACER 1 Rp12.500
09139-06027-000 SCREW (6X12) 1 Rp17.500
14795-10FA0-000
SUB: 14795B10FA0N000		 GROMMET 1 Rp5.500
14784-23K00-000 SHIELD, MUF COVER RR 1 Rp5.500
14783-23K00-000 SHIELD, MUF COVER FR 1 Rp5.500
14780-23K00-000 COVER, MUFFLER 1 Rp121.000
14310-23K00-000 BODY, MUFFLER 1 Rp1.900.000
5 01550-0835A-000 BOLT 2 Rp3.500
5 07130-0616A-000
SUB: 07130B0616AN000		 BOLT 6 Rp3.500
6 09160-06028-000 WASHER (6.5X18X1) 2 Rp3.500
14 01550-0825A-000 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
