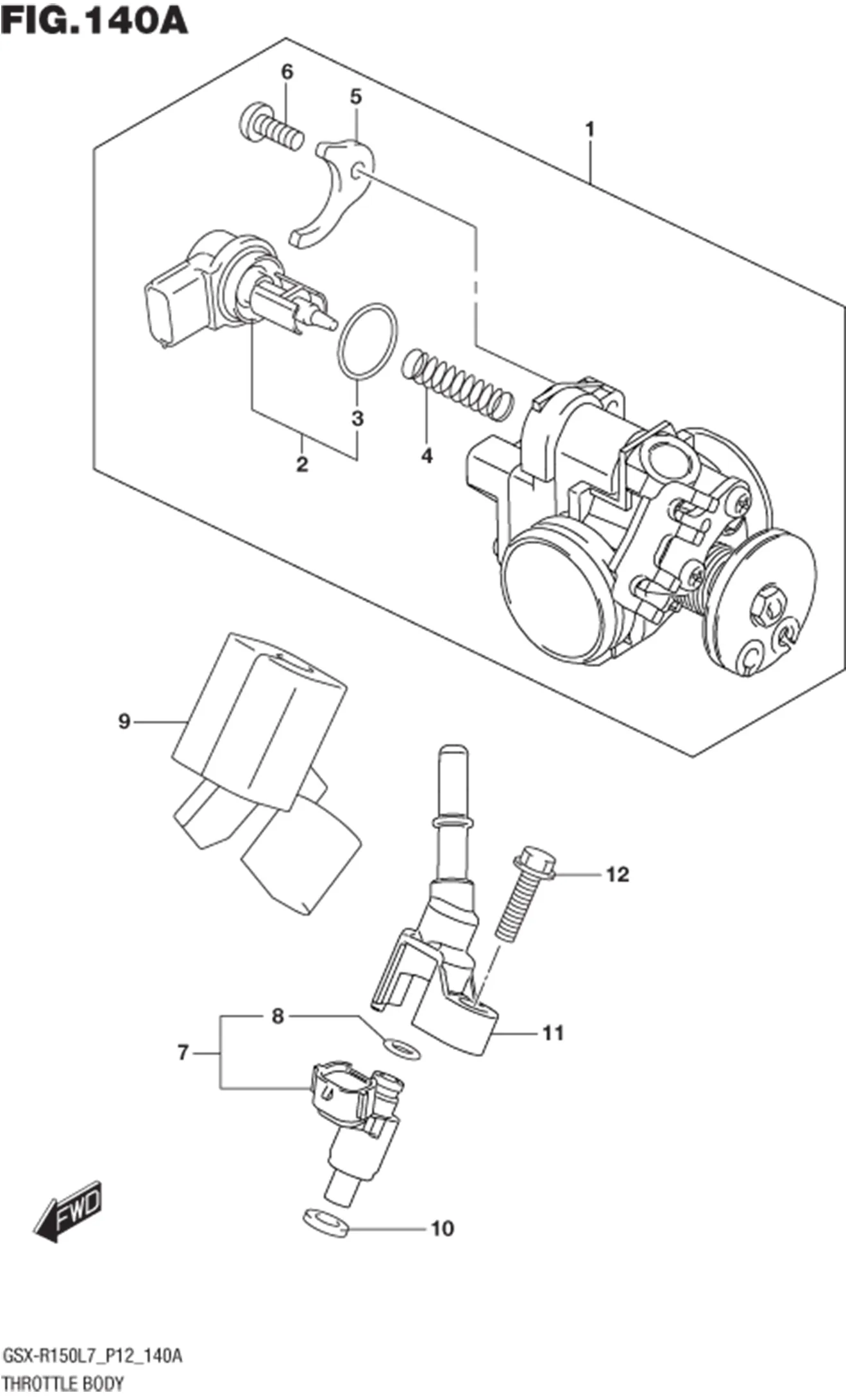

FIG.140A (1-B-11) THROTTLE BODY

FIG.140A (1-B-11) THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
13400-23K00-000 BODY ASSY, THROTTLE 1 Rp616.000
18117-09JA0-000 STEPPING MOTOR 1 Rp262.500
13438-09JA0-000 O RING 1 Rp27.500
13417-09JA0-000 COMPRESSION SPRING 1 Rp9.500
13421-42J00-000 PLATE 1 Rp22.500
13602-06128-000 SCREW 1 Rp9.000
15710-23K00-000 INJECTOR ASSY, FUEL 1 Rp1.345.500
15716-42J00-000 O RING 1 Rp75.000
15719-12K01-000
SUB: 15719-12K00-000		 COVER, FUEL INJECTOR 1 Rp10.000
15722-42J00-000 SEAL 1 Rp5.500
15830-23K00-000 JOINT, FUEL HOSE 1 Rp18.500
01547-0625A-000 BOLT 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
