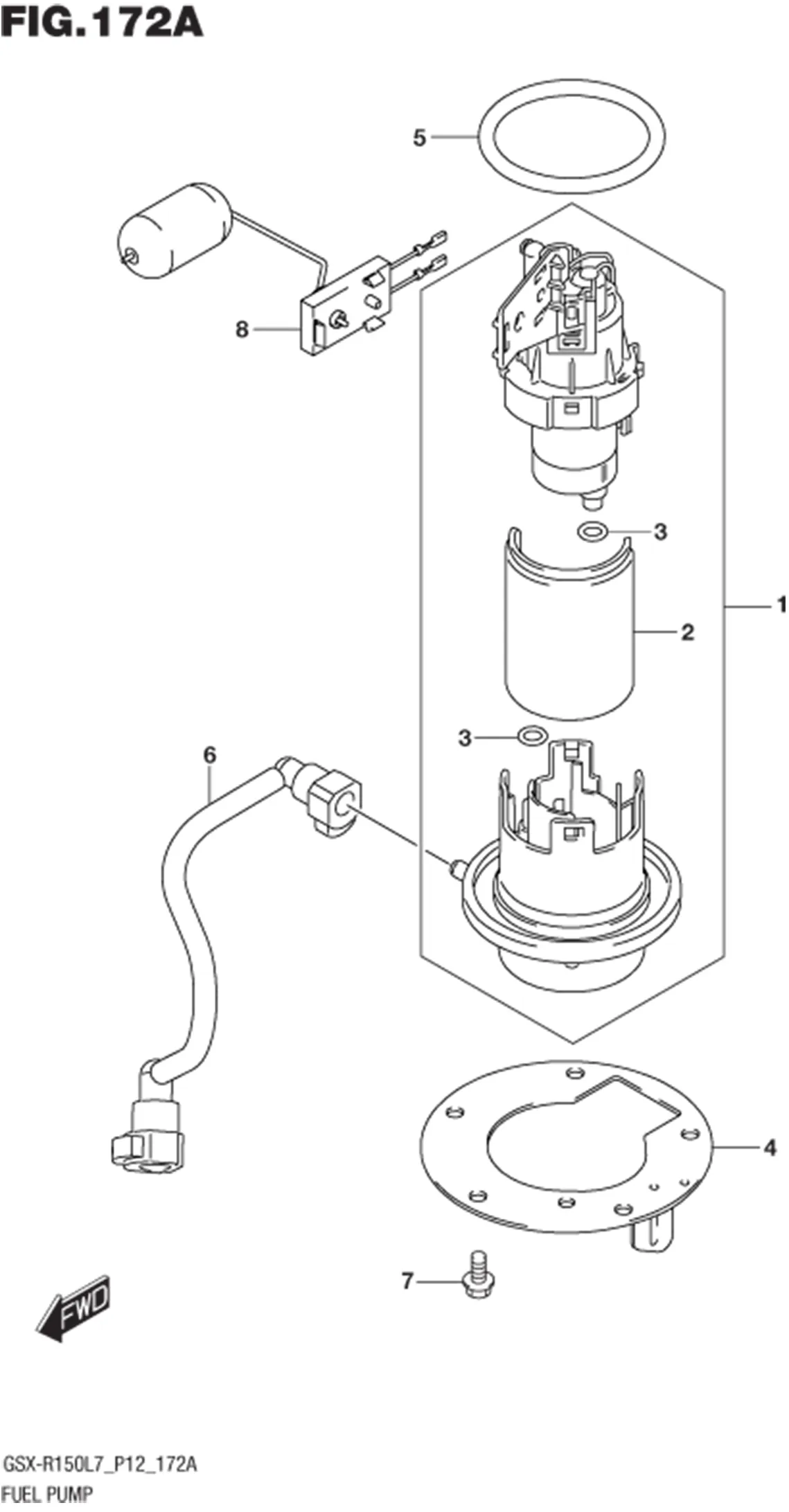

FIG.172A (1-B-15) FUEL PUMP

FIG.172A (1-B-15) FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
15100-23K00-000 PUMP ASSY, FUEL 1 Rp439.500
15420-34JB0-000 FILTER 1 Rp58.500
15424-09JB0-000 O RING 2 Rp10.000
15120-23K00-000 PLATE, FUEL PUMP 1 Rp16.500
DISCONTINUE
SUB: 15201-23K00-000		 O RING, FUEL PUMP 1 -
15810-23K00-000 HOSE, FUEL 1 Rp84.500
01547-0610A-000 BOLT 5 Rp3.000
34810-23K00-000 GAUGE ASSY, FUEL LEVEL SENDER 1 Rp69.000
03242-0416B-000
SUB: 03242-04163-000		 2 Rp33.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
