  5. FIG.155A (1-B-12) AIR CLEANER

GSXS-150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.102A (1-B-2) CYLINDER HEAD COVERFIG.103A (1-B-3) CYLINDER HEADFIG.107A (1-B-4) CYLINDERFIG.108A (1-B-5) CRANKCASEFIG.112A (1-B-6) CRANKCASE COVERFIG.120A (1-B-7) CRANKSHAFTFIG.122A (1-B-8) STARTER CLUTCHFIG.124A (1-B-10) CRANK BALANCERFIG.126A (1-B-9) CAMSHAFT/VALVEFIG.127A (1-B-10) CAM CHAINFIG.140A (1-B-11) THROTTLE BODYFIG.155A (1-B-12) AIR CLEANERFIG.163A (1-B-13) MUFFLERFIG.170A (1-B-14) OIL PUMPFIG.172A (1-B-15) FUEL PUMPFIG.180A (1-C-2) WATER PUMPFIG.185A (1-C-3) RADIATORFIG.187A (1-C-4) RADIATOR HOSEFIG.201A (1-C-9) CLUTCHFIG.210A (1-C-5) TRANSMISSION (1)FIG.212A (1-C-13) GEAR SHIFTINGFIG.240A (1-D-2) KICK STARTER

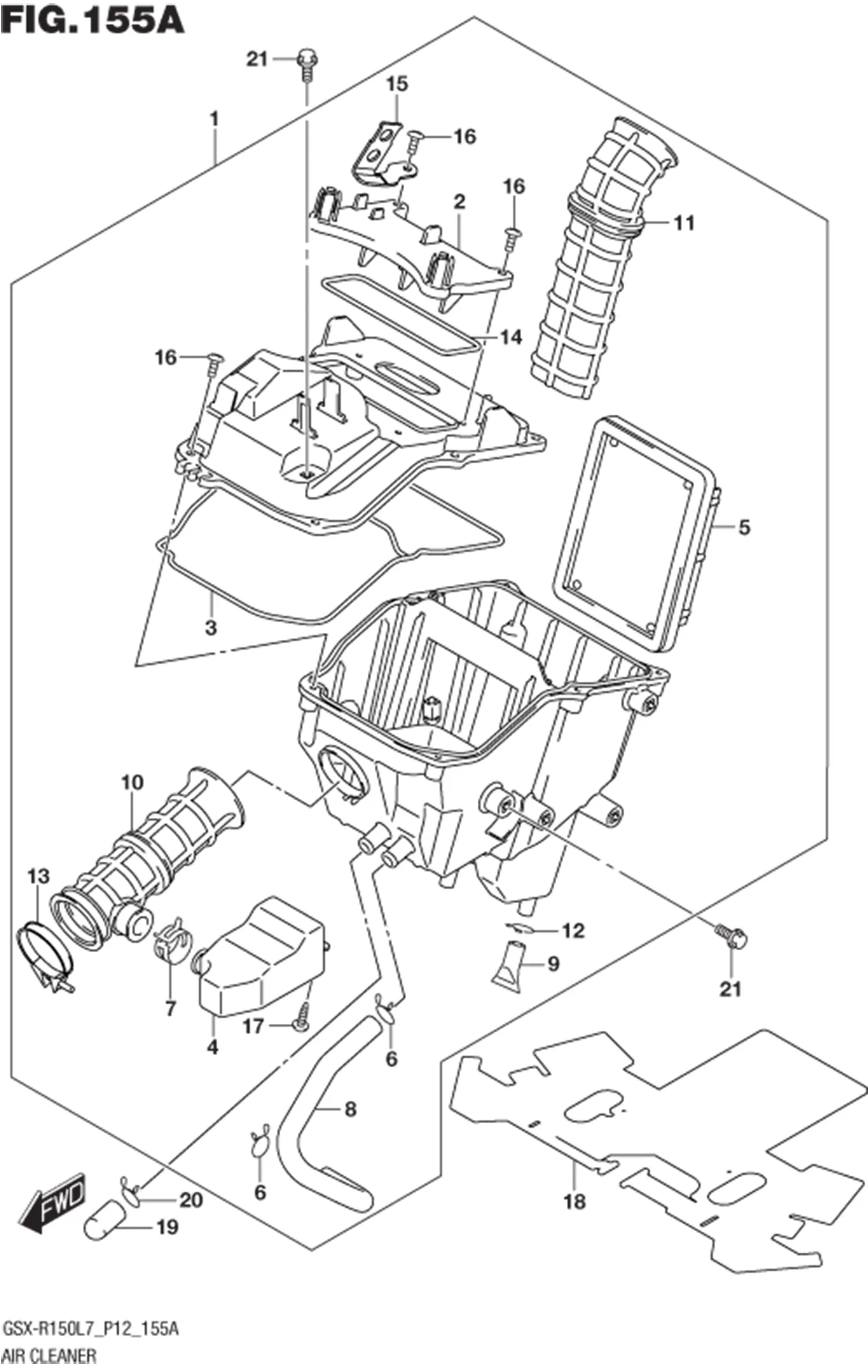

FIG.155A (1-B-12) AIR CLEANER

FIG.155A (1-B-12) AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
09401-11101-000 CLIP 2 Rp14.000
36739-52J00-000 1 Rp178.500
DISCONTINUE
SUB: 33800-52J10-000		 1 -
01550-0612A-000 BOLT 3 Rp3.500
09401-14101-000 CLIP, PLUG 1 Rp19.000
13859-23K00-000 PLUG, 2ND AIR NIPPLE 1 Rp7.000
13841-23K00-000 SHEET, AIR CLEANER INLET 1 Rp41.000
03541-0520B-000
SUB: 03541B0520BN000		 SCREW 10 Rp3.000
13911-23K00-000 BRACKET, RELAY 1 Rp31.500
13747-23K00-000 GASKET, CAP FILTER 1 Rp19.000
09402-44208-000
SUB: 09402B44208N000		 CLAMP 1 Rp8.000
13700-23K00-000 CLEANER ASSY, AIR 1 Rp378.000
13891-23K00-000 TUBE, INLET 1 Rp33.500
13881-23K00-000 TUBE, OUTLET 1 Rp54.500
13878-12K00-000 PLUG, DRAIN 2 Rp6.500
13853-23K00-000 TUBE, BREATHER 1 Rp23.000
13822-12K00-000 CLIP 1 Rp7.000
13821-12K00-000 CLIP 2 Rp4.500
13780-23K00-000 FILTER ASSY 1 Rp64.500
13761-23K00-000 RESONATOR 1 Rp22.000
13746-23K00-000 GASKET 1 Rp18.000
13741-23K00-000 CAP, AIR CLEANER 1 Rp33.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
