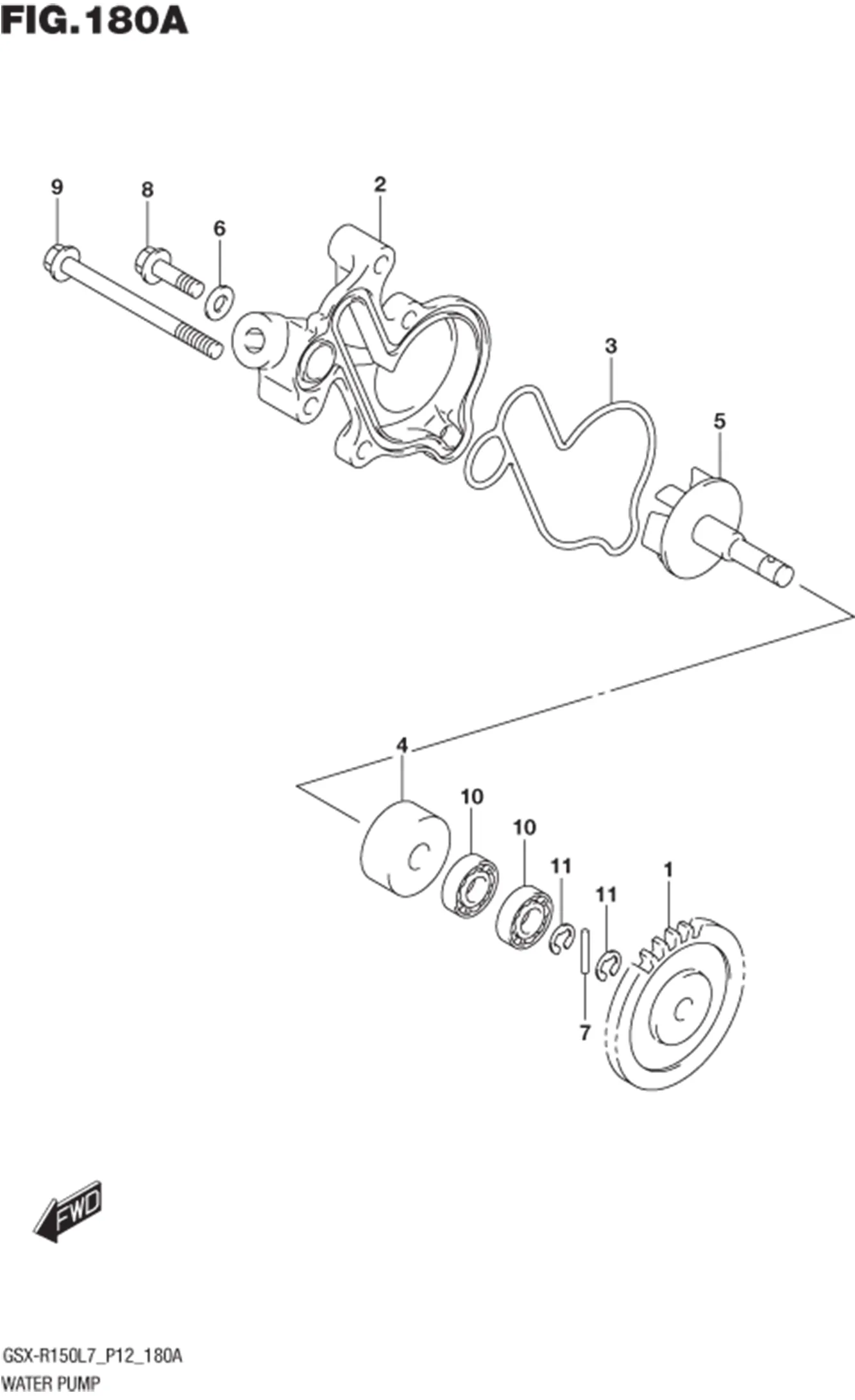

FIG.180A (1-C-2) WATER PUMP

FIG.180A (1-C-2) WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
16331-12K00-000 GEAR, WATER PUMP DRIVEN (NT:30) 1 Rp15.500
17410-12K20-000 CASE, WATER PUMP (BLACK) 1 Rp142.500
17431-12K10-000
SUB: 17431-12K00-000		 O RING, WATER PUMP CASE 1 Rp17.000
17461-12K00-000 SEAL, WATER PUMP SHAFT OIL 1 Rp81.000
17510-12K01-000
SUB: 17510-12K00-000		 SHAFT, WATER PUMP 1 Rp44.500
09261-02001-000 PIN (2.5X19.8) 1 Rp9.000
08113-06080-000 BEARING 2 Rp23.500
08332-1106A-000
SUB: 08332B1106AN000		 E RING 2 Rp8.500
9 09168-06018-000
SUB: 09168B06018N000		 GASKET (6.2X13X1.2) 1 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
