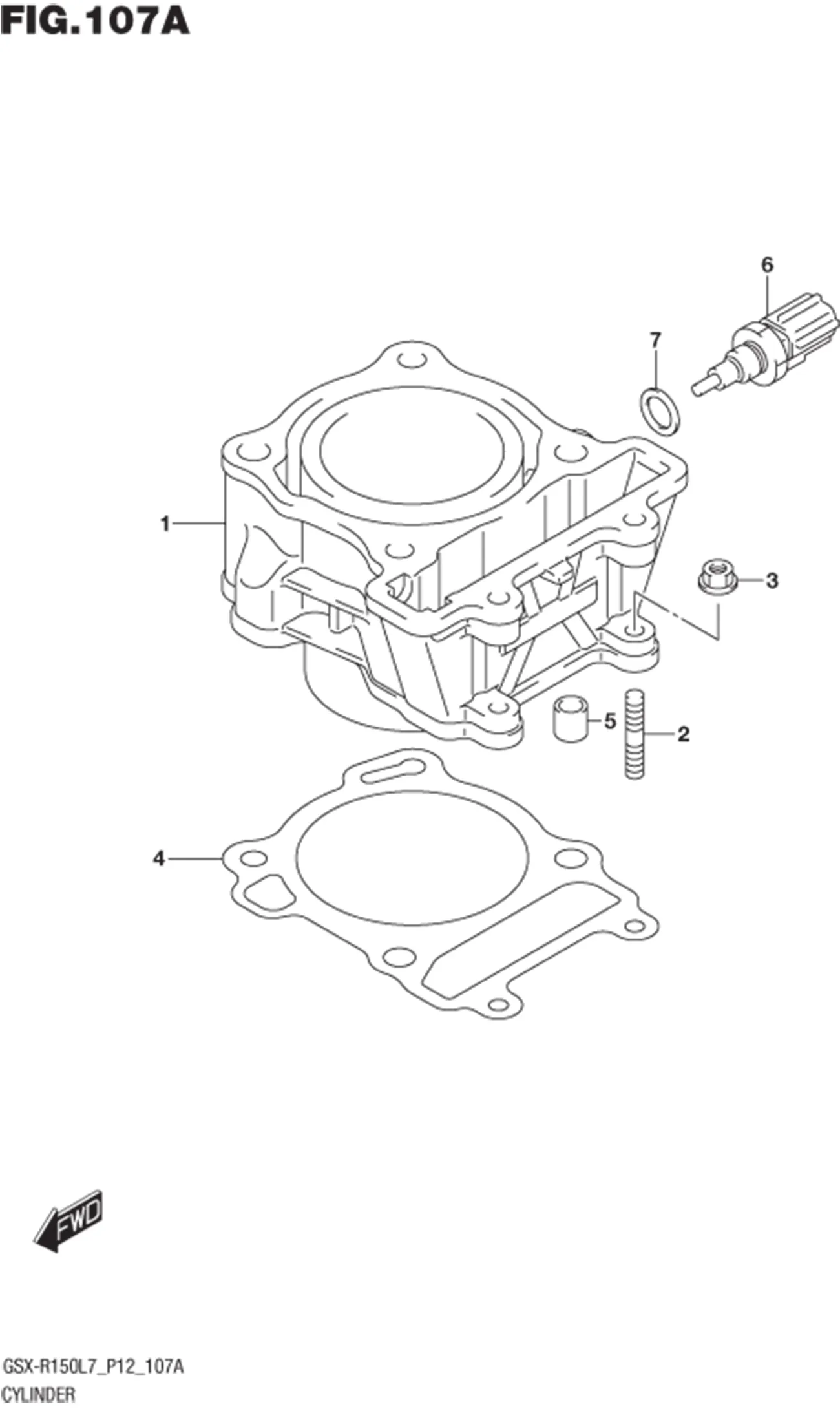

FIG.107A (1-B-4) CYLINDER

FIG.107A (1-B-4) CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
11211-12K01-0F0
SUB: 11211-12K00-0F0		 CYLINDER 1 Rp1.712.500
11241-12K00-000 GASKET, CYLINDER HEAD 1 Rp15.500
13650-49X00-000 SENSOR, TEMP 1 Rp133.500
3 01421-0620A-000
SUB: 01421B0620AN000		 BOLT 2 Rp3.500
4 08316-1006A-000 NUT 3 Rp2.000
9 09168-12017-000 GASKET, OIL GALLERY PIPE 4 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
