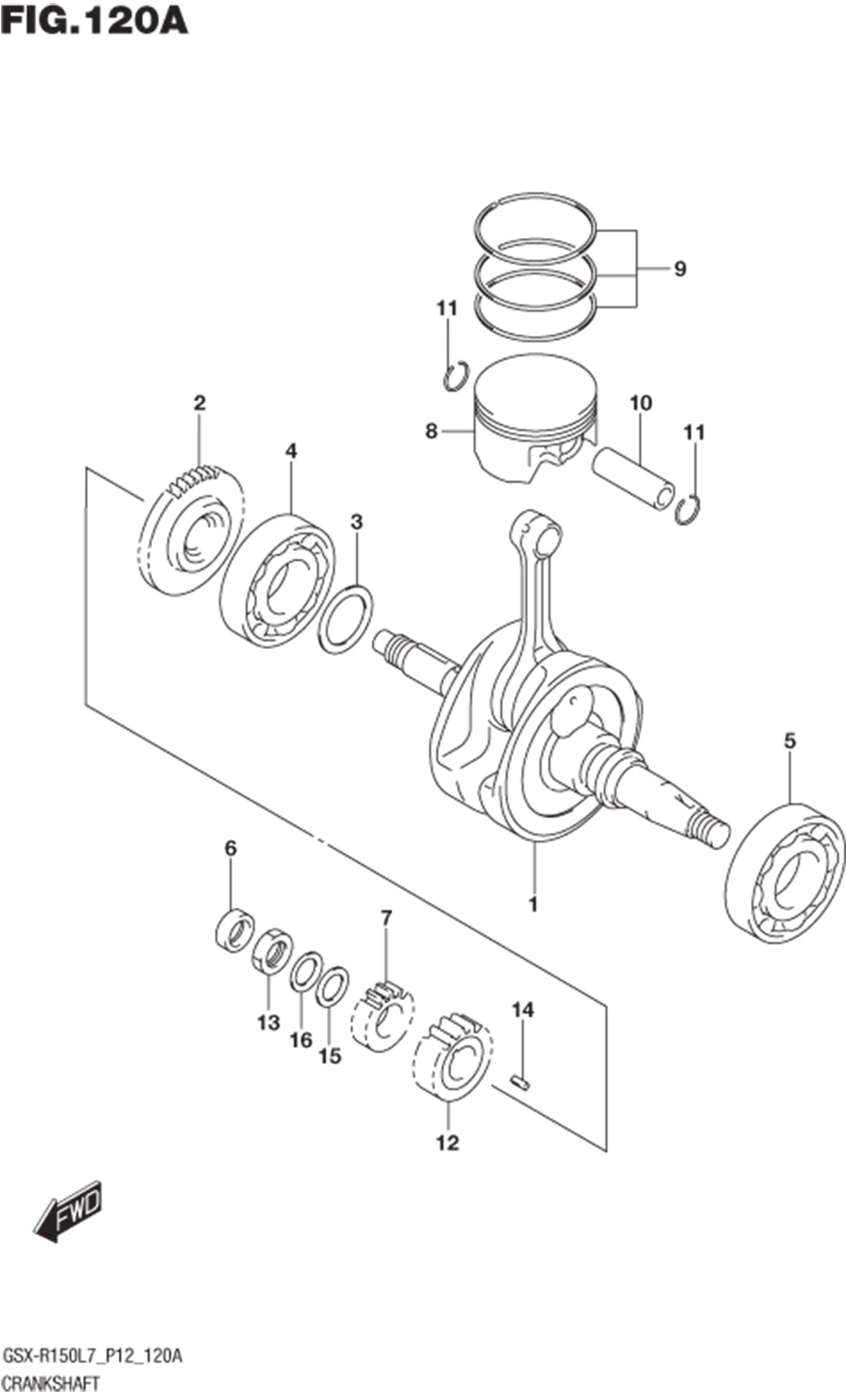

FIG.120A (1-B-7) CRANKSHAFT

FIG.120A (1-B-7) CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
12200-12K31-000
SUB: 12200-12K30-000		 CRANKSHAFT ASSY 1 Rp996.500
12661-12K00-000 GEAR, CRANK BALANCER DRIVE(NT:44) 1 Rp129.500
12228-12K00-0A0 SHIM (T:0.6) 1 Rp10.500
09262-28058-000 BEARING 1 Rp78.000
09262-35103-000 BEARING 1 Rp85.000
09282-12L01-000
SUB: 09282B12L01N000		 OIL SEAL (12X21X7) 1 Rp15.500
16321-12K00-000 GEAR, OIL PUMP DRIVE (NT:15) 1 Rp57.000
12111-12K00-0F0 PISTON 1 Rp98.000
12140-12K00-000 RING SET, PISTON 1 Rp68.500
12151-12K00-000 PIN, PISTON 1 Rp13.500
09381-15001-000 CIRCLIP 2 Rp10.500
21111-12K00-0A0 GEAR, PRIMARY DRIVE (NT:21) 1 Rp117.000
09140-16019-000
SUB: 09140B16019N000		 NUT 1 Rp11.000
09421-04011-000 KEY 1 Rp7.500
08211-16251-000 WASHER 1 Rp5.500
09164-16005-000
SUB: 09164B16005N000		 WASHER 1 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
