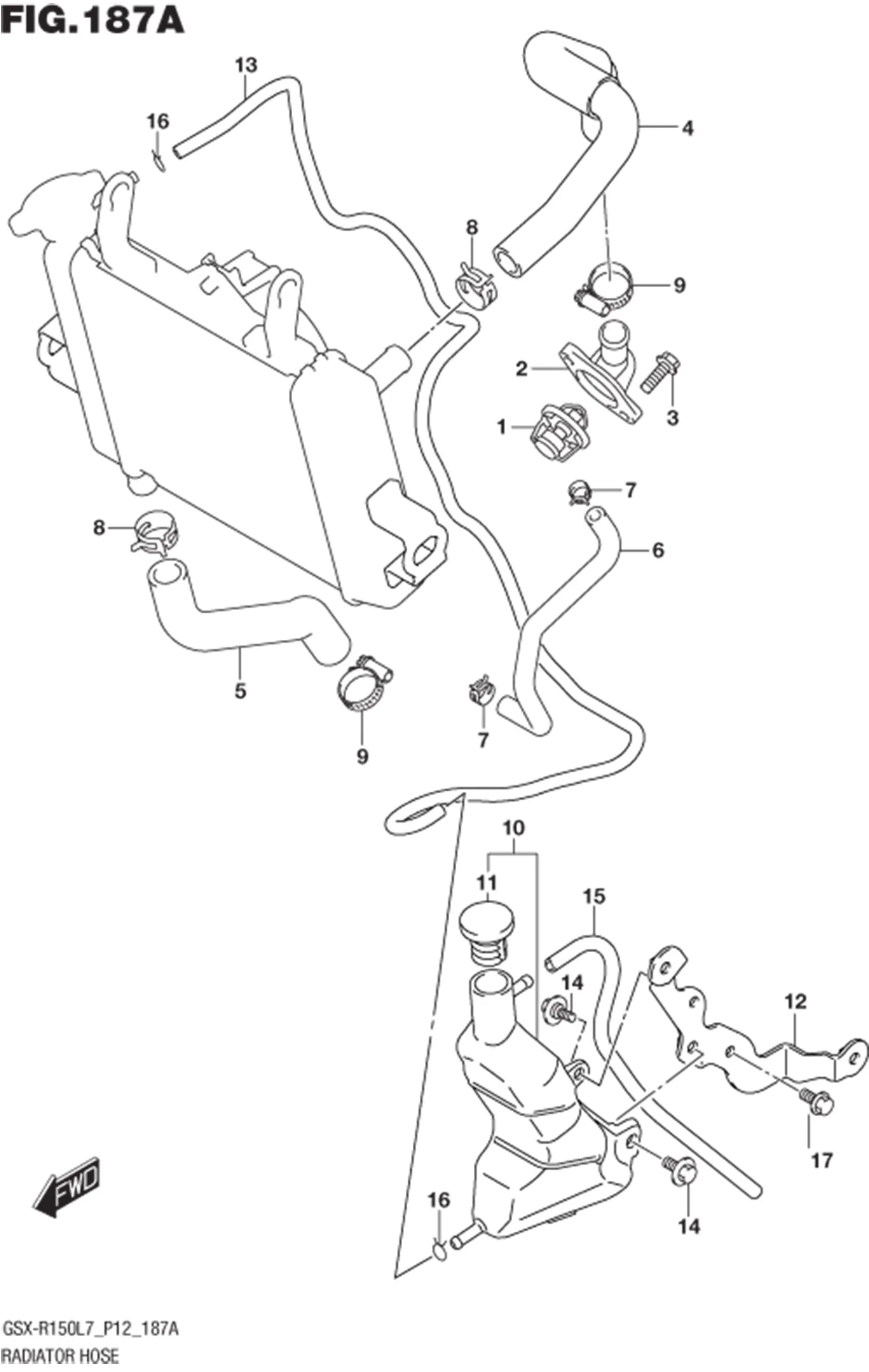

FIG.187A (1-C-4) RADIATOR HOSE

FIG.187A (1-C-4) RADIATOR HOSE
No No. Part Description Qty Price Per Pcs Remarks
17931-31J10-000 CAP, WATER RESERVOIR TANK 1 Rp32.000
DISCONTINUE
SUB: 36845B65D01N000		 1 -
DISCONTINUE
SUB: 09404-08420-000		 3 -
02162-0612B-000
SUB: 02162-06123-000		 1 Rp16.000
09401-08402-000
SUB: 09401B08402N000		 CLIP 2 Rp2.000
09352-50007-280
SUB: 09352-50001-280		 HOSE 1 Rp7.000
09111-06063-000
SUB: 09111B06063N000		 BOLT (6X12) 2 Rp3.500
17981-23K00-000 HOSE, RESERVOIR TANK INLET 1 Rp14.500
17920-23K10-000 BRACKET, RESERVOIR TANK 1 Rp19.500
17670-12K11-000
SUB: 17670-12K10-000		 THERMOSTAT, WATER 1 Rp89.500
17910-23K00-000 TANK ASSY, RESERVOIR 1 Rp51.000
DISCONTINUE
SUB: 09402-27002-000		 CLAMP 2 -
DISCONTINUE
SUB: 09401-20414-000		 CLIP 2 -
09401-10417-000 CLIP 2 Rp5.000
17856-12K00-000 HOSE, WATER BYPASS 1 Rp11.500
17852-12K10-000
SUB: 17852-12K00-000		 HOSE, RADIATOR OUTLET 1 Rp15.000
17851-23K00-000 HOSE, RADIATOR INLET 1 Rp46.000
17661-12K02-000
SUB: 17661-12K00-000		 COVER, THERMOSTAT 1 Rp23.000
63 DISCONTINUE
SUB: 36995B77E21N000		 BRACKET, ENG HARN OP SW & CPLR 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
