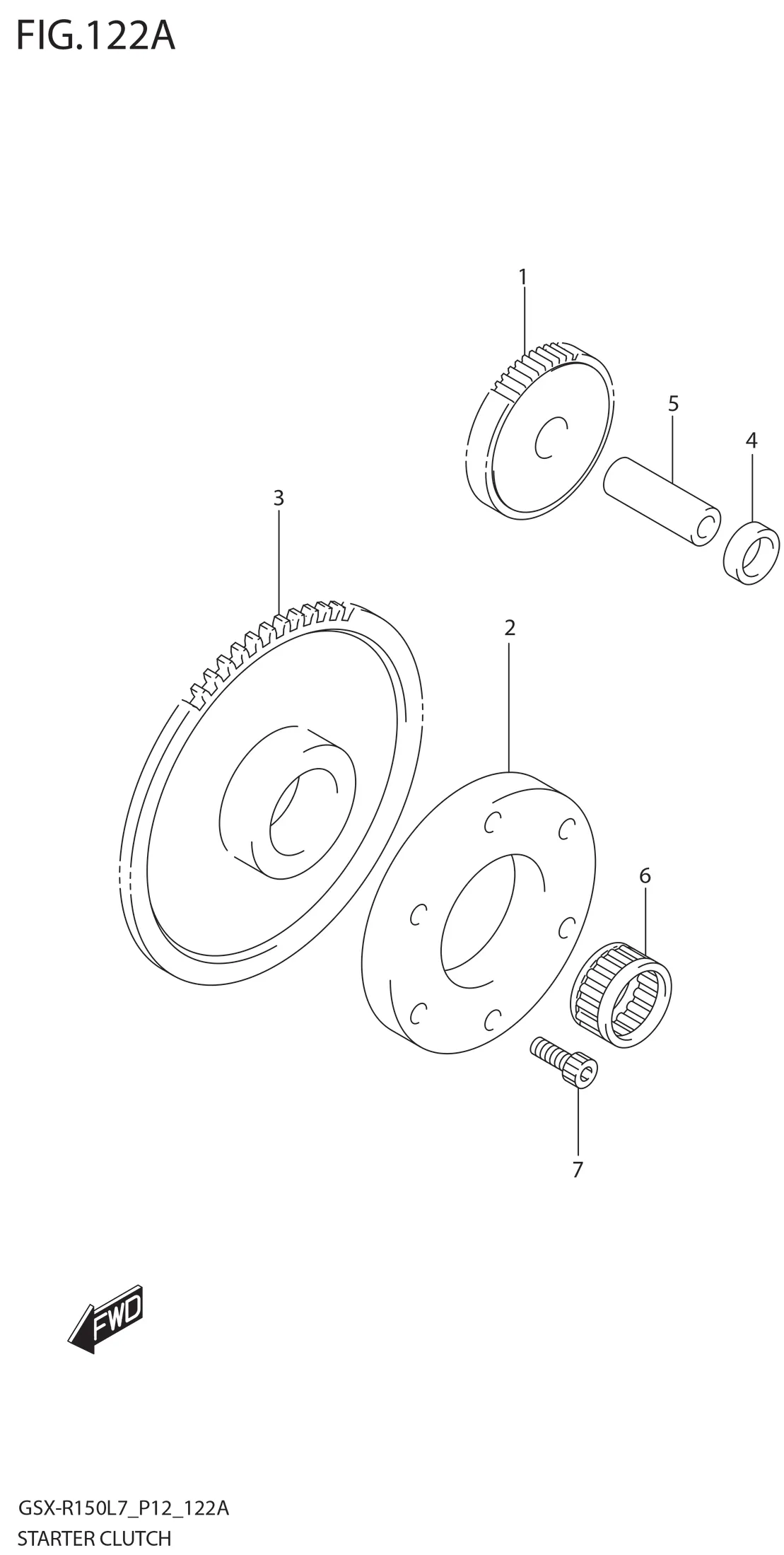

FIG.122A (1-B-8) STARTER CLUTCH

FIG.122A (1-B-8) STARTER CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
12611-12K00-000
SUB: 12611-12K10-000		 GEAR, STARTER IDLE (NT:15/53) 1 Rp40.500
12614-34J20-000
SUB: 12614-26H00-000		 CLUTCH,STARTER ONE WAY 1 Rp342.500
12622-12K02-000
SUB: 12622-12K01-000		 GEAR,STARTER CLUTCH 1 Rp147.000
09180-13012-000
SUB: 09180B13012N000		 SPACER (13X19X6) 1 Rp7.500
09206-13007-000
SUB: 09206B13007N000		 PIN (7.4X13X40) 1 Rp35.500
09263-22075-000 BEARING 1 Rp34.000
5 07130-0616A-000
SUB: 07130B0616AN000		 BOLT 6 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
