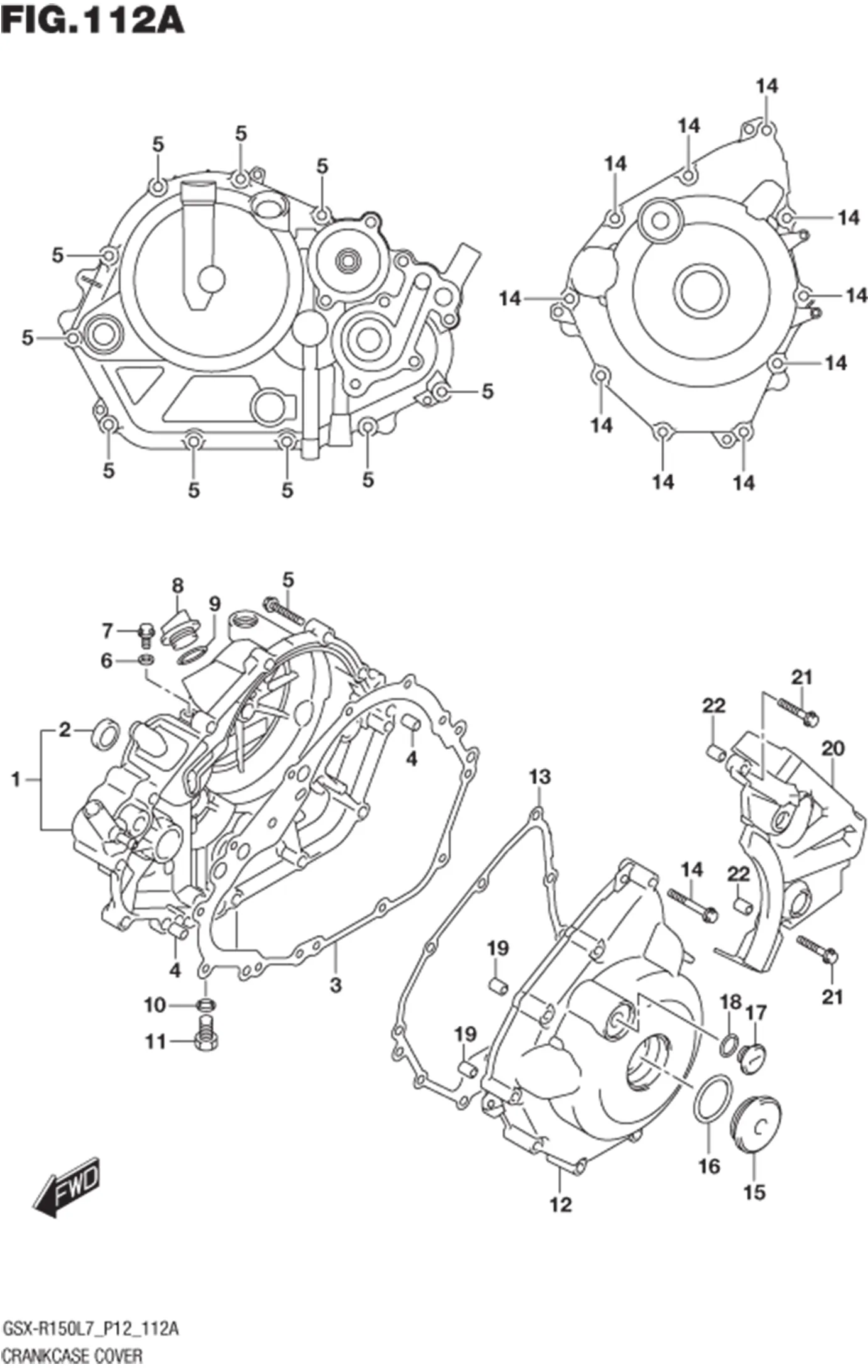

FIG.112A (1-B-6) CRANKCASE COVER

FIG.112A (1-B-6) CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
DISCONTINUE
SUB: 01580-10203-000		 2 -
11340-12K20-000 COVER, CLUTCH 1 Rp579.000
28181-65D10-000 1 Rp40.000
02142-0510A-000
SUB: 02142-05103-000		 2 Rp4.000
DISCONTINUE
SUB: 28164-50J10-000		 1 -
DISCONTINUE
SUB: 28160-50JN0-KN1		 1 -
DISCONTINUE
SUB: 28176-50J30-000		 2 -
DISCONTINUE
SUB: 27140-52D00-000		 1 -
DISCONTINUE
SUB: 27200-83820-000		 1 -
51118-36213-000 8 Rp27.500
09206-08008-000 PIN (6.3X8X12) 2 Rp4.000
DISCONTINUE
SUB: 09103-10313-000		 3 -
DISCONTINUE
SUB: 27110-68D20-000		 1 -
DISCONTINUE
SUB: 27300-68830-000		 1 -
27315-78E50-000
SUB: 27315-78E00-000		 1 Rp191.500
DISCONTINUE
SUB: 27323-68D00-000		 12 -
DISCONTINUE
SUB: 27331-68D00-000		 4 -
DISCONTINUE
SUB: 27341-68D00-000		 2 -
DISCONTINUE
SUB: 27351-68D00-000		 1 -
11360-12K00-000 COVER, ENGINE SPROCKET 1 Rp44.000
11971-45010-000
SUB: 11971B45010N000		 LENS, OIL LEVEL CHECK 1 Rp33.500
11482-12K00-000 GASKET, CLUTCH COVER 1 Rp23.000
09206-08008-000 PIN (6.3X8X12) 2 Rp4.000
01547-0630A-000 BOLT 10 Rp6.500
11342-25G00-000
SUB: 11342B25G00N000		 PLUG, OIL FILLER 1 Rp19.000
09280-17003-000 O RING (D:3.1,ID:16.8) 1 Rp2.000
01500-1016A-000
SUB: 01500B1016AN000		 BOLT 1 Rp7.500
11351-12K20-000 COVER, MAGNETO 1 Rp269.500
11483-12K00-000 GASKET, MAGNETO COVER 1 Rp15.500
09259-36031-000 PLUG 1 Rp19.500
09280-33004-000 O RING (D:3.1,ID:32.7) 1 Rp12.500
11352-22J00-000 PLUG,TOP 1 Rp7.000
09206-08008-000 PIN (6.3X8X12) 2 Rp4.000
01547-0630A-000 BOLT 2 Rp6.500
4 09159-10091-000 NUT 4 Rp26.500
9 09168-06018-000
SUB: 09168B06018N000		 GASKET (6.2X13X1.2) 1 Rp8.500
11 09168-10L02-000
SUB: 09168B10L02N000		 GASKET, OIL DRAIN (NA) 1 Rp2.500
11 28118-64B61-000 TUBE, SWITCH WIRE 1 Rp23.500
20 09280-14003-000
SUB: 09280-14003L000		 O RING, D:2.5 ID:13.8 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
