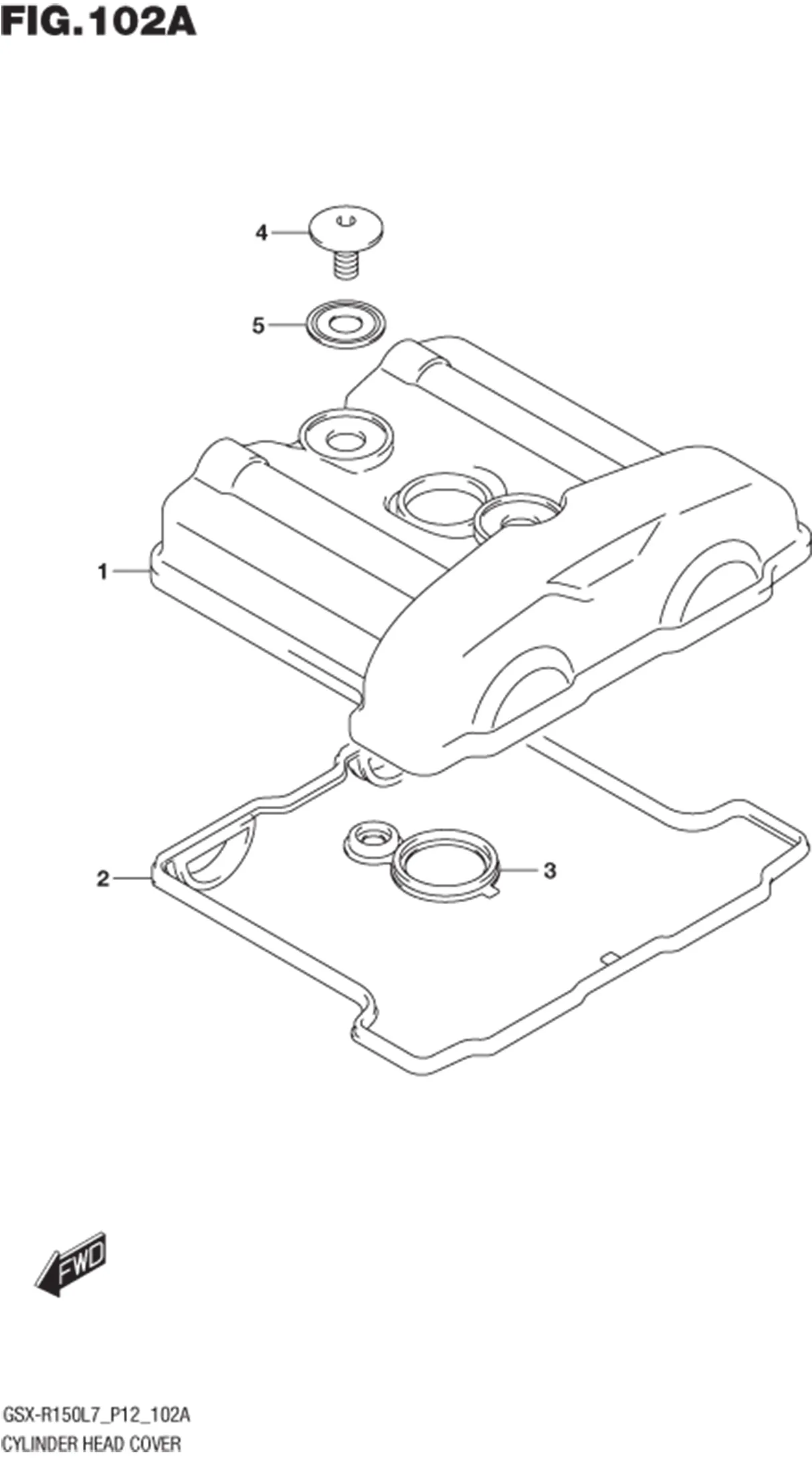

FIG.102A (1-B-2) CYLINDER HEAD COVER

FIG.102A (1-B-2) CYLINDER HEAD COVER
No No. Part Description Qty Price Per Pcs Remarks
11171-12K10-000 OVER, CYLINDER HEAD 1 Rp243.000
11173-12K00-000 GASKET, CYL HEAD COVER NO.1 1 Rp30.500
11178-12K00-000 GASKET, CYL HEAD COVER NO.1 1 Rp7.000
09106-07025-000
SUB: 09106B07025N000		 BOLT (L:5.5) 2 Rp5.000
5 11191-27E70-000
SUB: 11191B27E70N000		 WASHER, HEAD COVER BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
