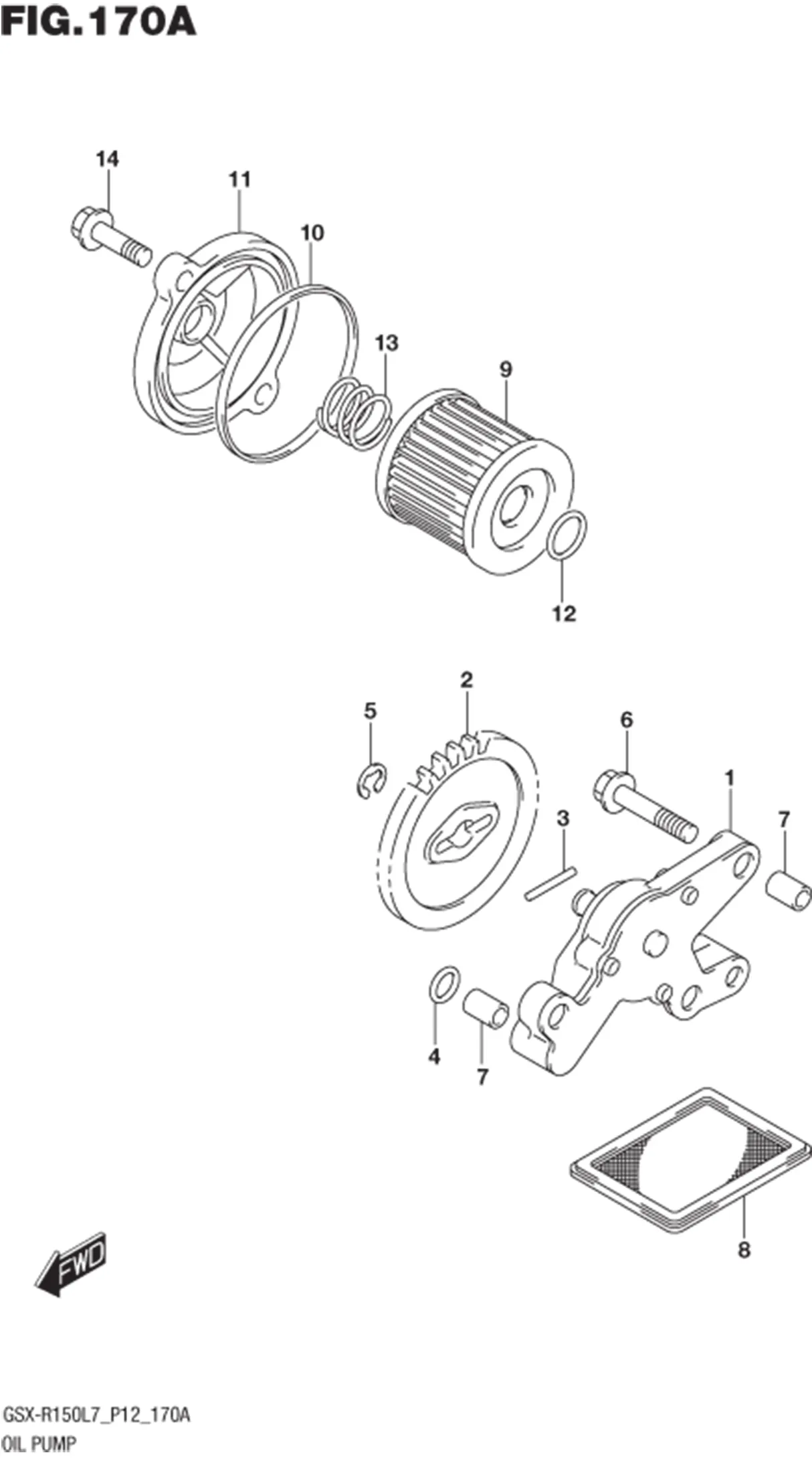

FIG.170A (1-B-14) OIL PUMP

FIG.170A (1-B-14) OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
16400-12K00-000 PUMP ASSY, ENGINE OIL 1 Rp48.500
16331-12K00-000 GEAR, OIL PUMP DRIVEN (NT:30) 1 Rp15.500
09261-02001-000 PIN (2.5X19.8) 1 Rp9.000
09280-08022-000 O RING 1 Rp4.500
08332-1106A-000
SUB: 08332B1106AN000		 E RING 1 Rp8.500
01547-0630A-000 BOLT 3 Rp6.500
09206-08008-000 PIN (6.3X8X12) 3 Rp4.000
16520-45H01-000
SUB: 16520B45H00N000		 STRAINER, ENGINE OIL 1 Rp14.500
16512-22J30-000 CAP, OIL FILTER (GOLD) 1 Rp84.500
09280-13010-000 O RING (D:1.9,ID:12.5) 1 Rp3.000
16519-09J00-000 SPRING, OIL FILTER 1 Rp3.000
09471-12192-000 2 Rp56.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
